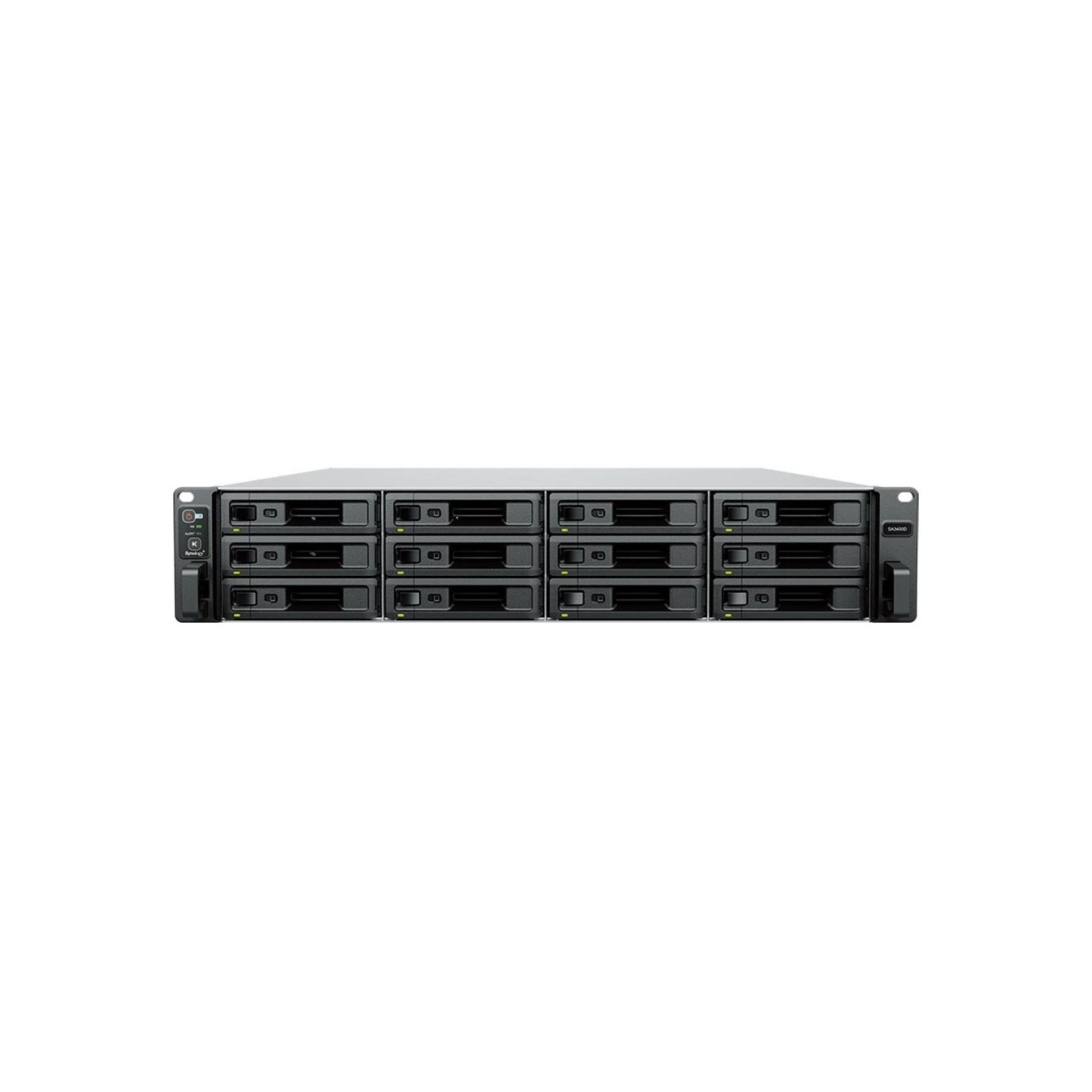

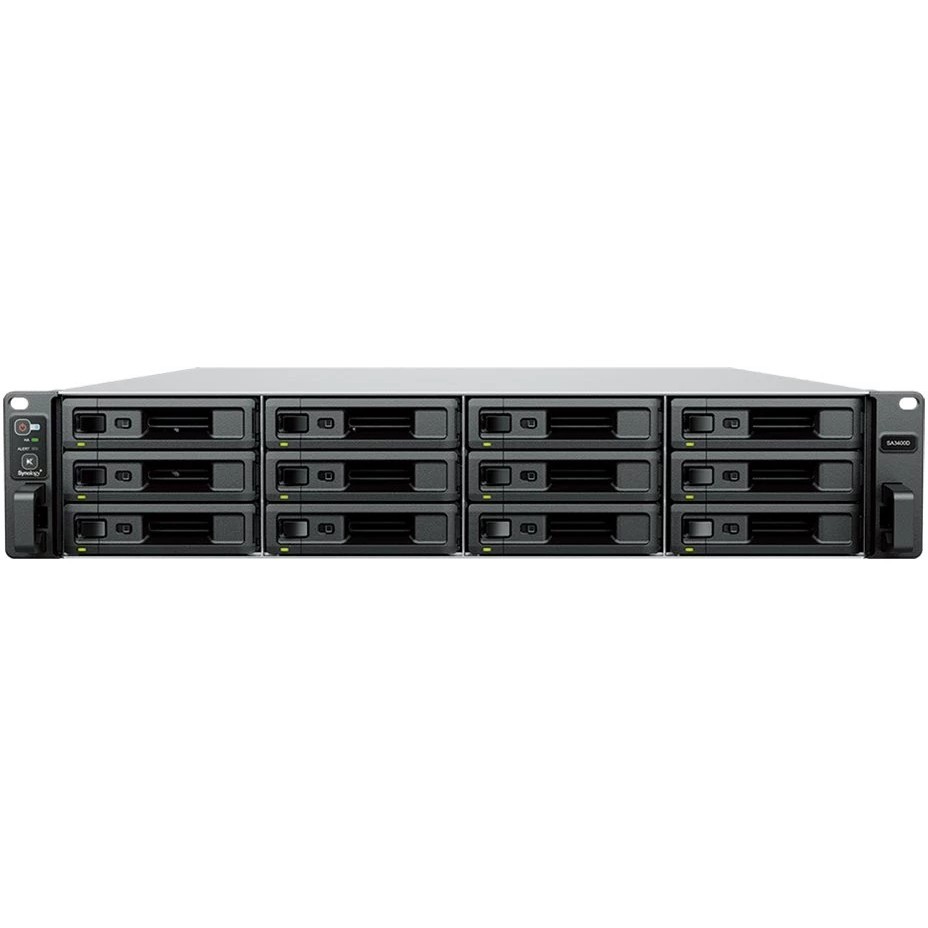

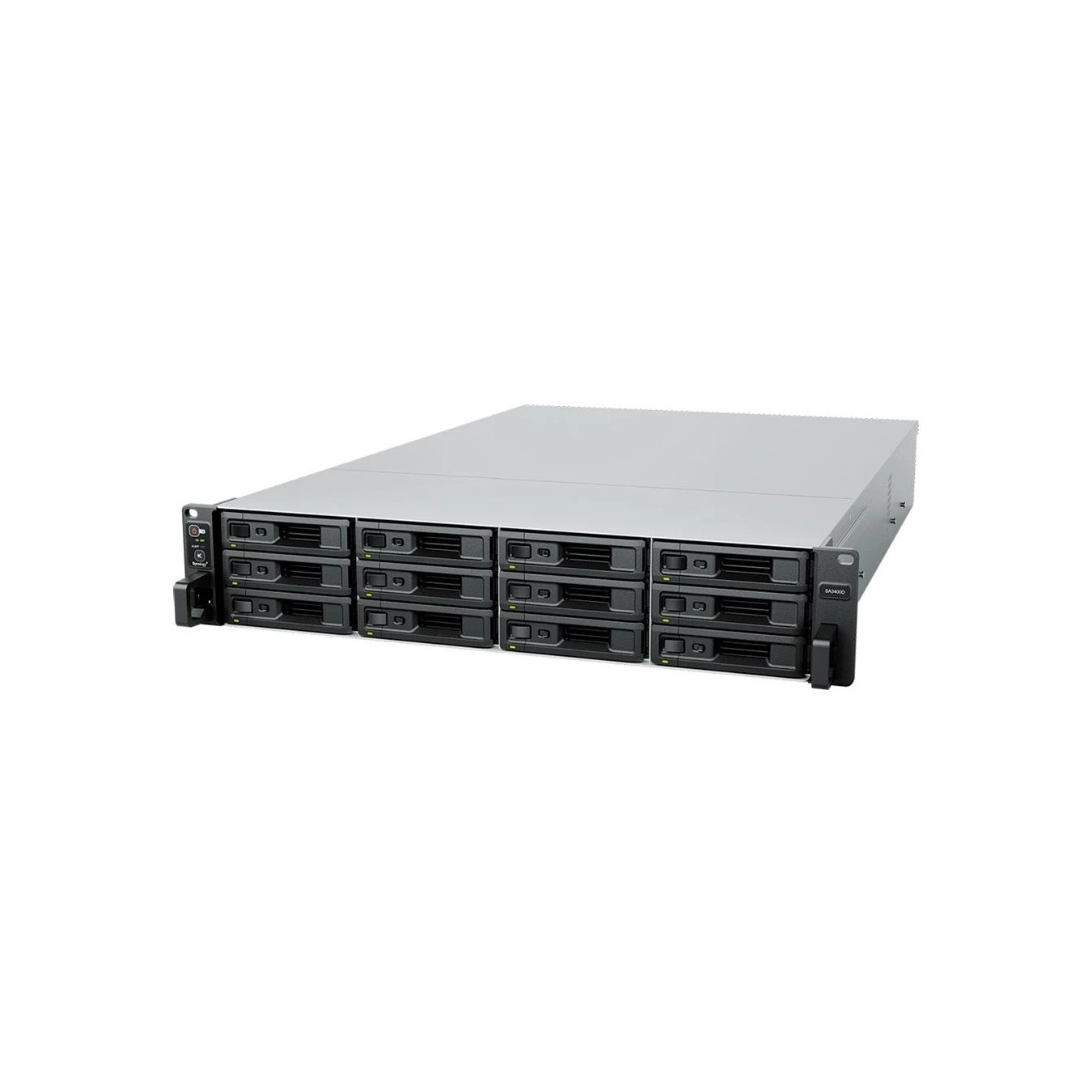

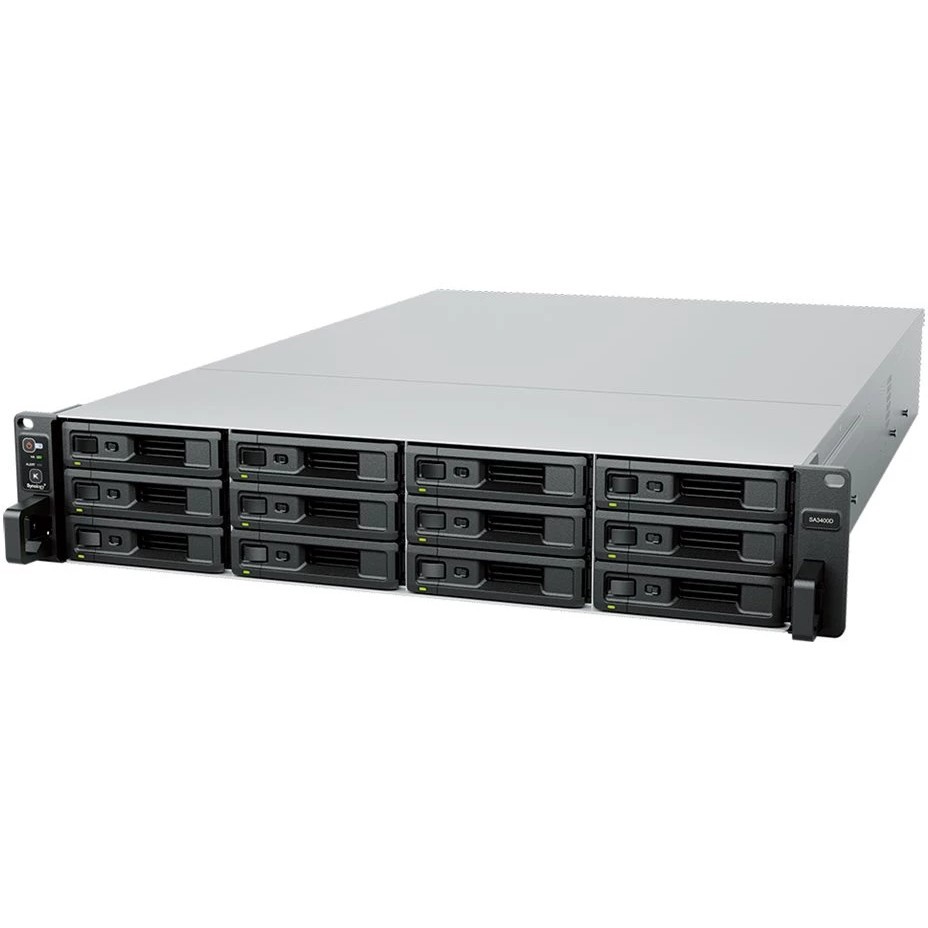

Synology SA3400D - 12-Bay 2U Rack NAS - Intel Xeon D-1541 2.1GHz (2.7GHz Boost), 8GB DDR4, SAS, HDD/SSD
Enterprise 12-bay 2U rack NAS with Intel Xeon D-1541 (2.1/2.7GHz), 8GB DDR4 (expandable to 64GB), SAS support, HDD/SSD, RAID 0/1/5/10 & JBOD.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - RAID Levels | JBOD |
|---|---|
| NAS (Network Attached Storage) - Hot-swap | Yes |
Synology SA3400D. Type: NAS. Chassis type: Rack (2U). Processor family: Intel® Xeon® D. Processor model: D-1541. Processor frequency: 2.1 GHz. Internal memory: 8 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB
| Storage drive capacity | 0 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | Redundant power supply (RPS) support |
| RAID levels | 0. 1. 5. 10. JBOD |
| Supported file systems | BTRFS. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® D |
| Processor model | D-1541 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 8 |
| Processor cache | 12 MB |
| CPU configuration (max) | 1 |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Supported network protocols | SMB1 (CIFS). SMB2. SMB3. NFSv3. NFSv4. NFSv4.1. NFS Kerberized sessions. iSCSI. Fibre Channel. HTTP. HTTPs. FTP. SNMP. LDAP. CalDAV |
| Ethernet LAN (RJ-45) ports | 3 |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Fan diameter | 6 cm |
| Type | NAS |
| Number of users | 16000 user(s) |
| Power supply unit (PSU) capacity | 500 W |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Width | 482 mm |
| Depth | 724 mm |
| Height | 88 mm |
| Weight | 19.7 kg |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
