NUC Innovation U5 GEN14 Wifi7 - KON14U5HU-NO-0/0W7 (Boxed)

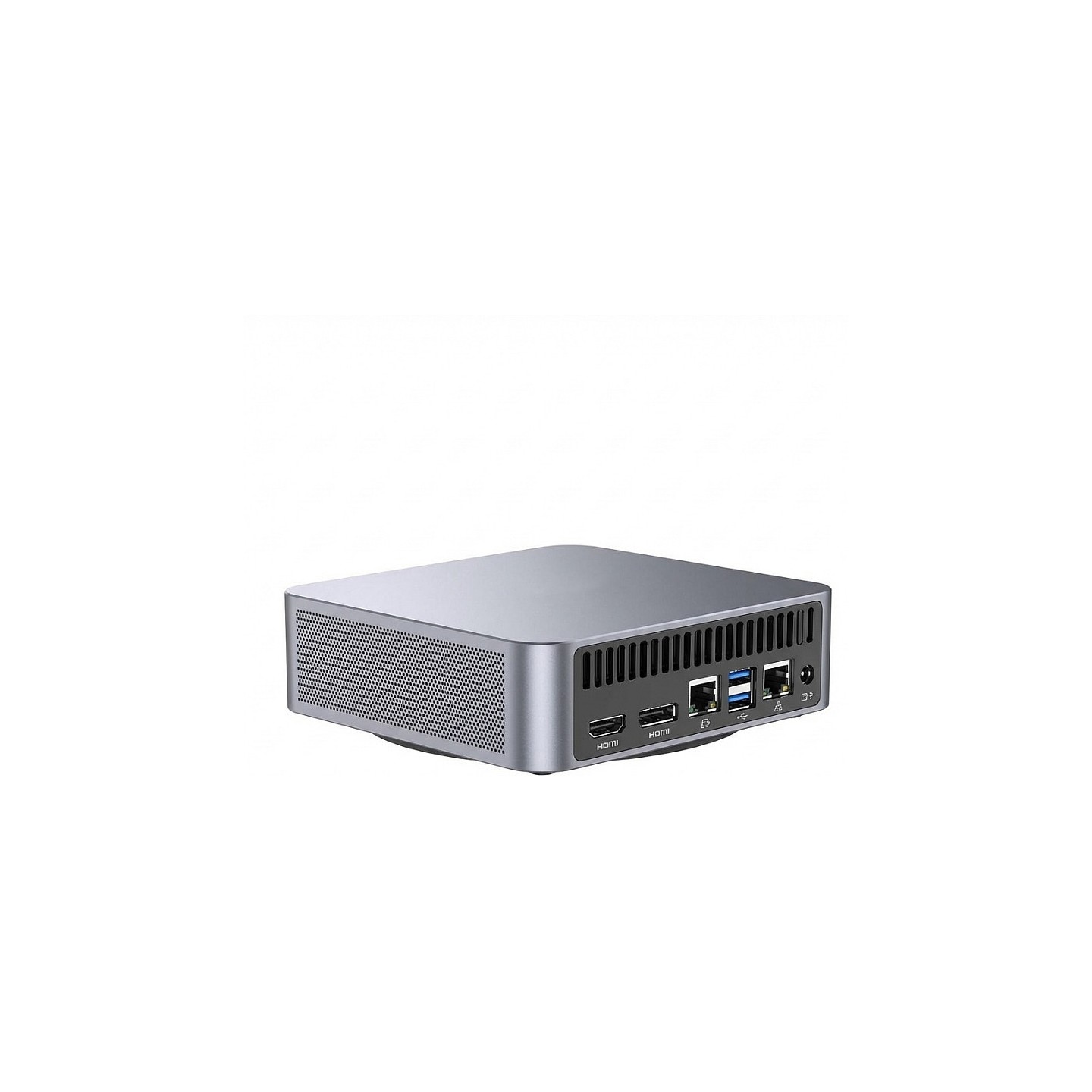

The NUC Innovation U5 GEN14 Wifi7 is a compact barebone Mini PC kit supporting Intel Core Ultra processors up to i9, with integrated Intel Arc graphics, WiFi 7, 2.5G Ethernet, Thunderbolt 4, and dual HDMI. Ideal for custom home/office builds without RAM, storage, or OS.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Barebone & Mini PC - System Type | Barebone Kit (No RAM/Storage) |
|---|---|
| Barebone & Mini PC - Processor Family | Intel Core Ultra 3 Intel Core Ultra 5 Intel Core Ultra 7 |
| Barebone & Mini PC - Graphics Chipset | Intel Arc Graphics |
| Barebone & Mini PC - Operating System | No OS |
| Barebone & Mini PC - Installed Storage | None (Barebone) |
| Barebone & Mini PC - Installed Memory (RAM) | None (Barebone) |
The NUC Innovation U5 GEN14 Wifi7 (MPN: KON14U5HU-NO-0/0W7) is a high-performance barebone Mini PC designed for compact computing solutions in home, office, or light server environments. This kit features the latest Intel 14th Gen Core Ultra 'Meteor Lake' socket, supporting processors from Core Ultra 3 to Ultra 9 with integrated Intel Arc graphics for efficient AI-accelerated tasks and multi-display support.
Connectivity is future-proofed with WiFi 7, Bluetooth 5.3+, 2.5G Ethernet, dual Thunderbolt 4 ports, HDMI 2.1, and multiple USB 3.2 ports. It supports up to 96GB DDR5-5600 SODIMM RAM (dual-channel), M.2 PCIe Gen4 NVMe SSD, and 2.5-inch SATA storage. The toolless chassis allows easy upgrades in a 4x4-inch form factor.
- Processor: Intel Core Ultra Series (LGA1851 socket)
- Graphics: Integrated Intel Arc
- Networking: WiFi 7 + 2.5G LAN
- Ports: 2x TB4, 2x HDMI 2.1, USB-C/A
- Expansion: 2x DDR5 SO-DIMM, M.2 + 2.5" bays
- Included: No RAM, storage, or OS (barebone)
| Type | Barebone Kit (No RAM/Storage) |
| MPN | KON14U5HU-NO-0/0W7 |
| Processor Socket | LGA1851 (Intel Core Ultra Series) |
| Processor Family | Intel Core Ultra 3/5/7/9 |
| Graphics | Intel Arc Graphics (integrated) |
| RAM Support | Up to 96GB DDR5-5600 (2x SO-DIMM) |
| Storage Bays | 1x M.2 2280 PCIe Gen4 x4 NVMe, 1x M.2 2242, 1x 2.5-inch SATA |
| Networking | WiFi 7, Bluetooth 5.3, 2.5G Ethernet (Intel I226) |
| Ports | 2x Thunderbolt 4 Type-C, 2x HDMI 2.1, 1x USB 3.2 Gen2 Type-C, 2x USB 3.2 Gen2 Type-A, 1x USB 2.0, 1x RJ45 |
| Form Factor | Slim Mini PC (approx. 117x112x37 mm chassis) |
| Power Adapter | External DC-in (120W compatible) |
| OS | None (barebone) |
