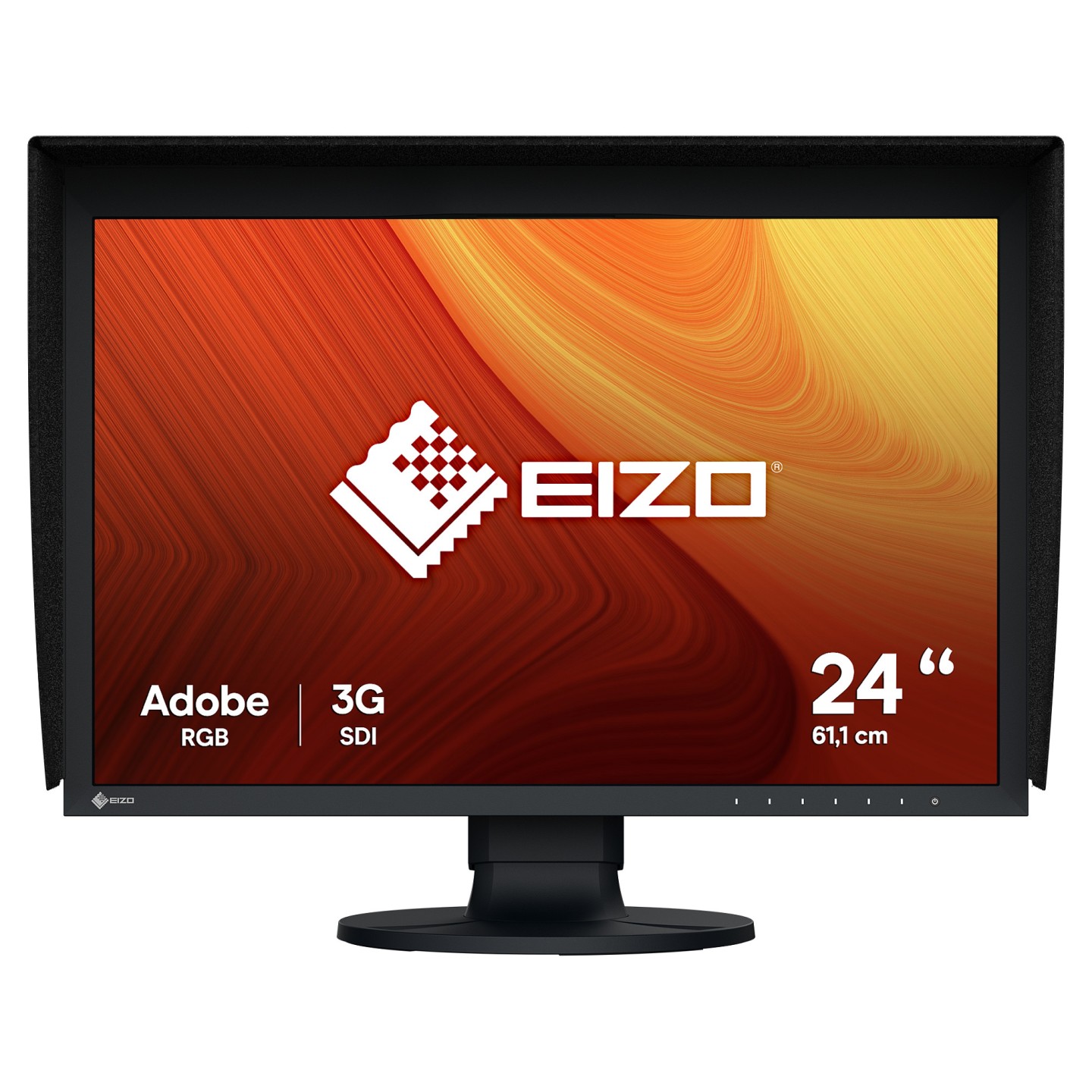

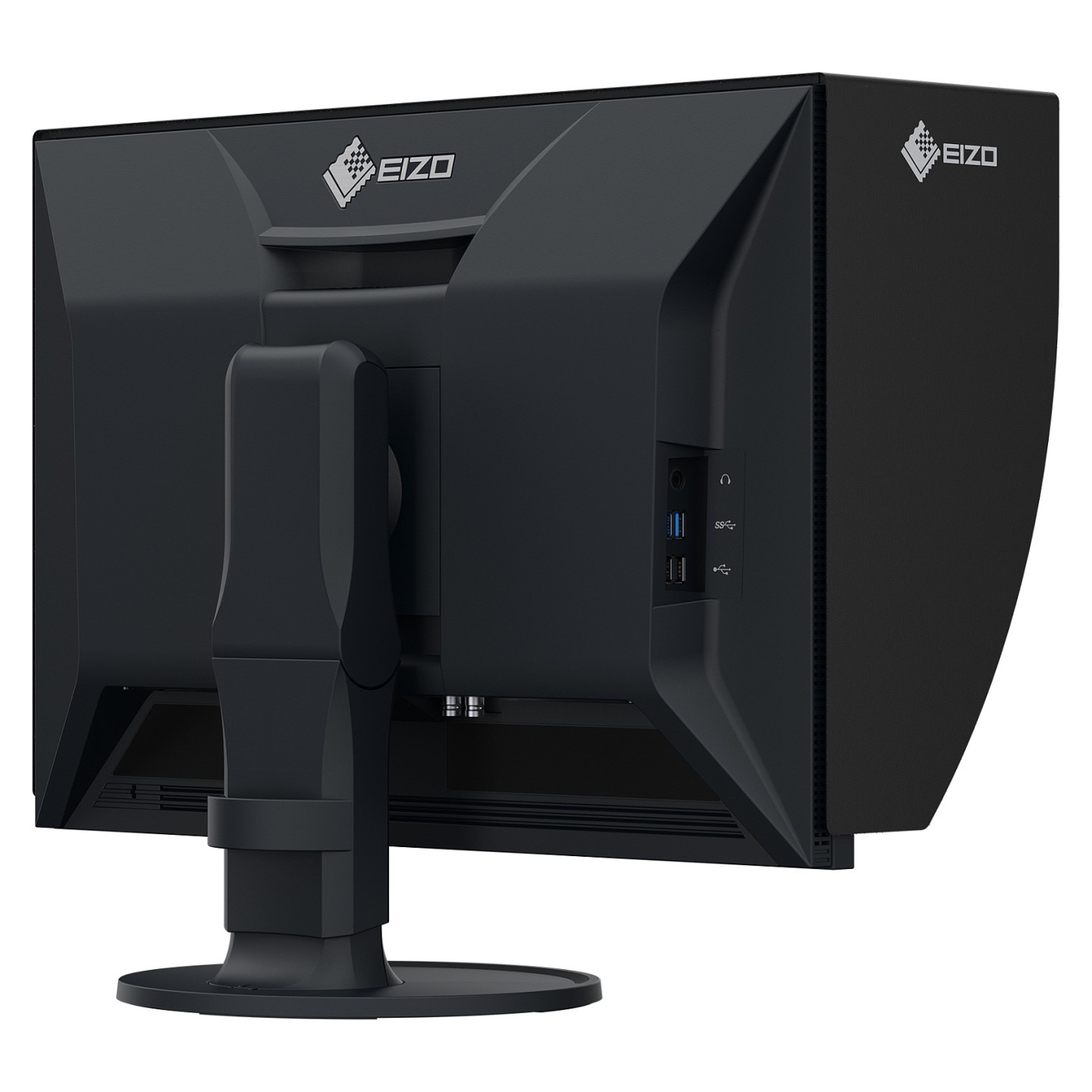

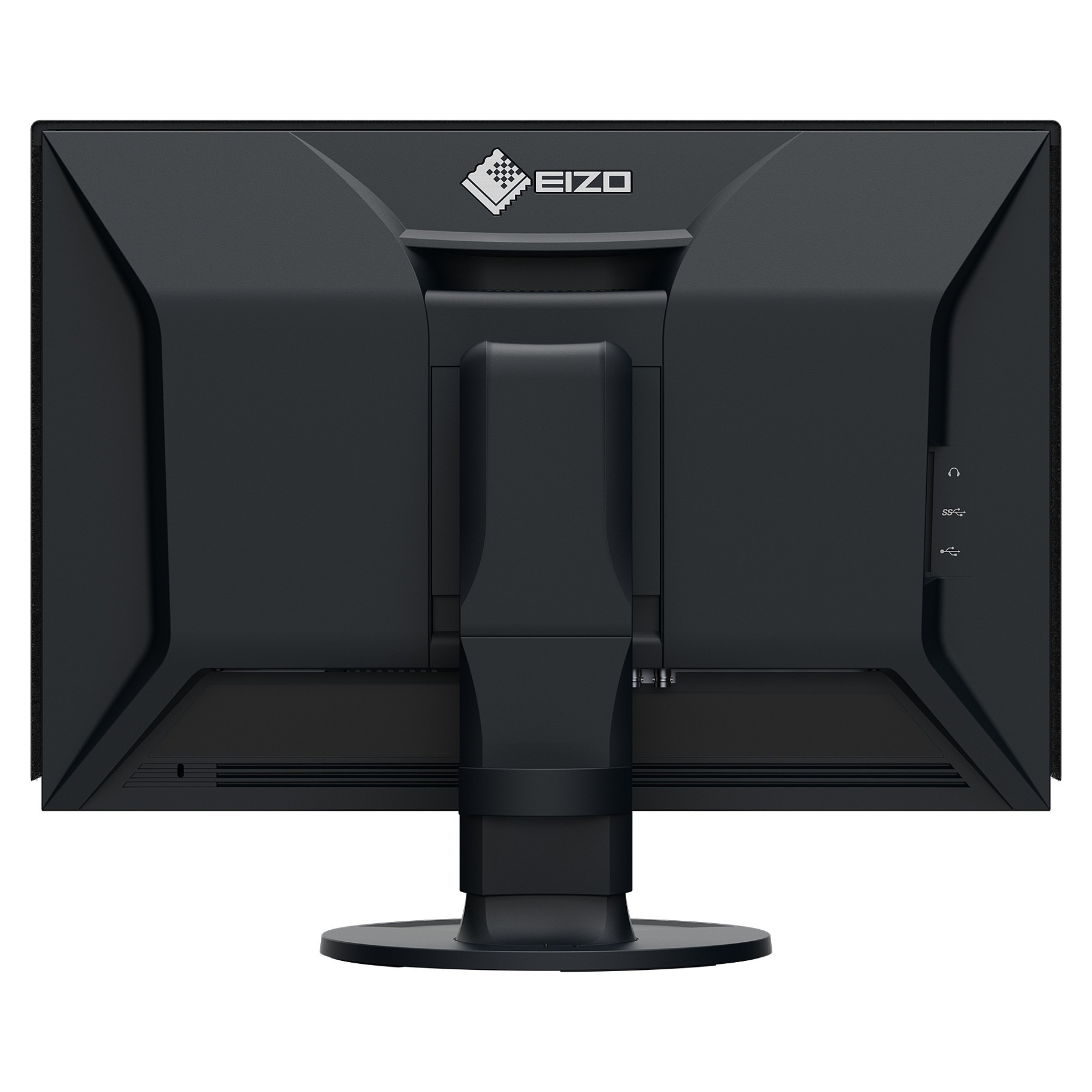

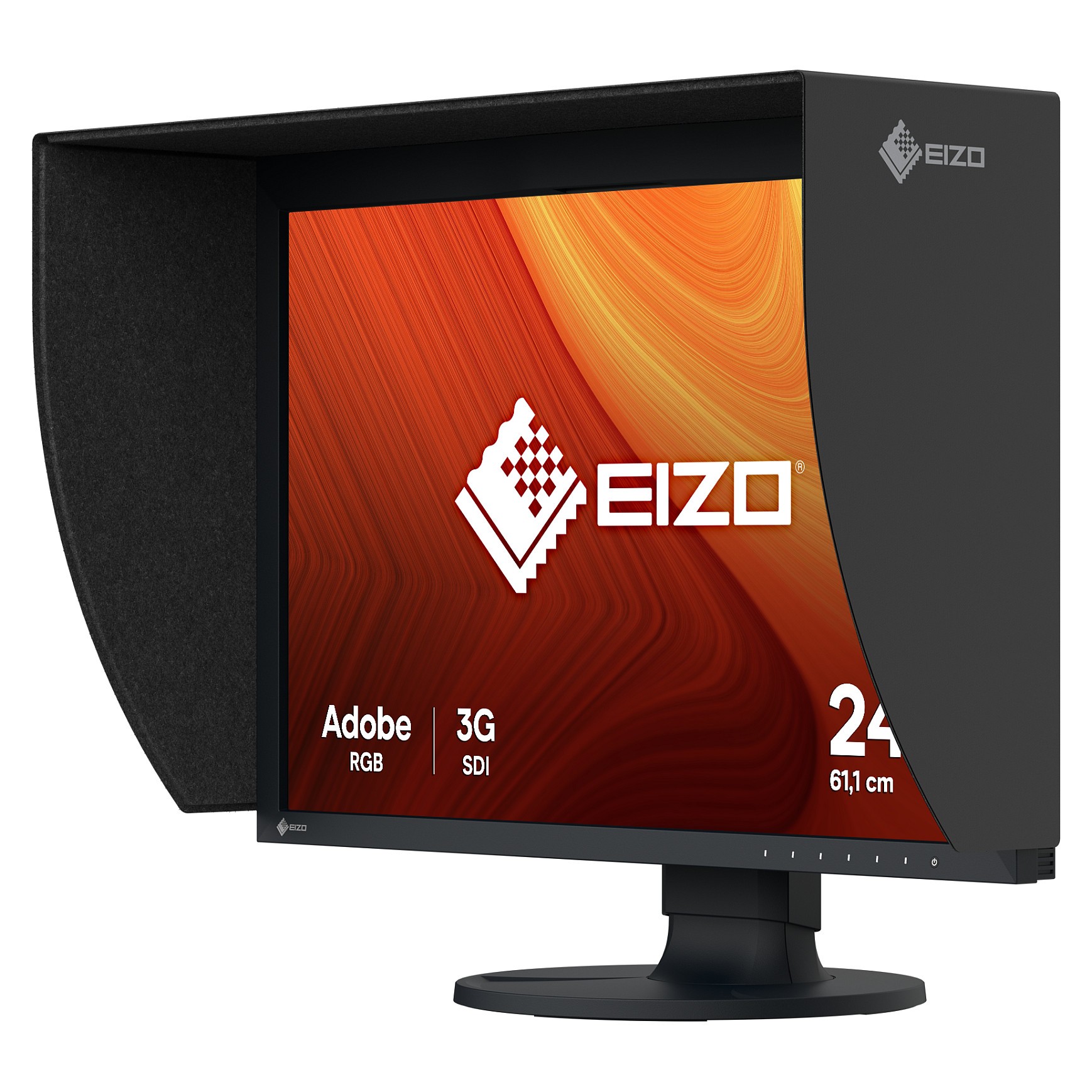

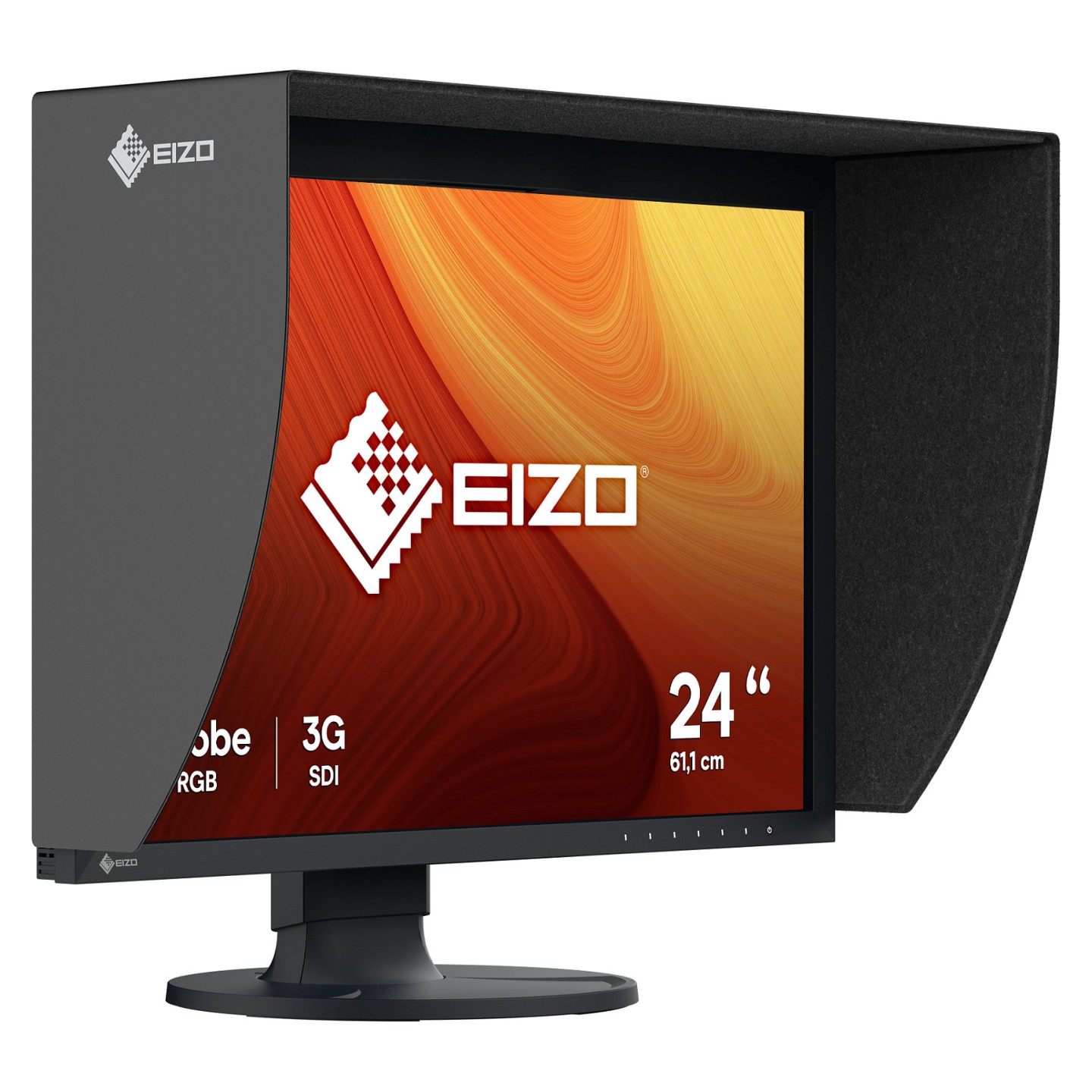

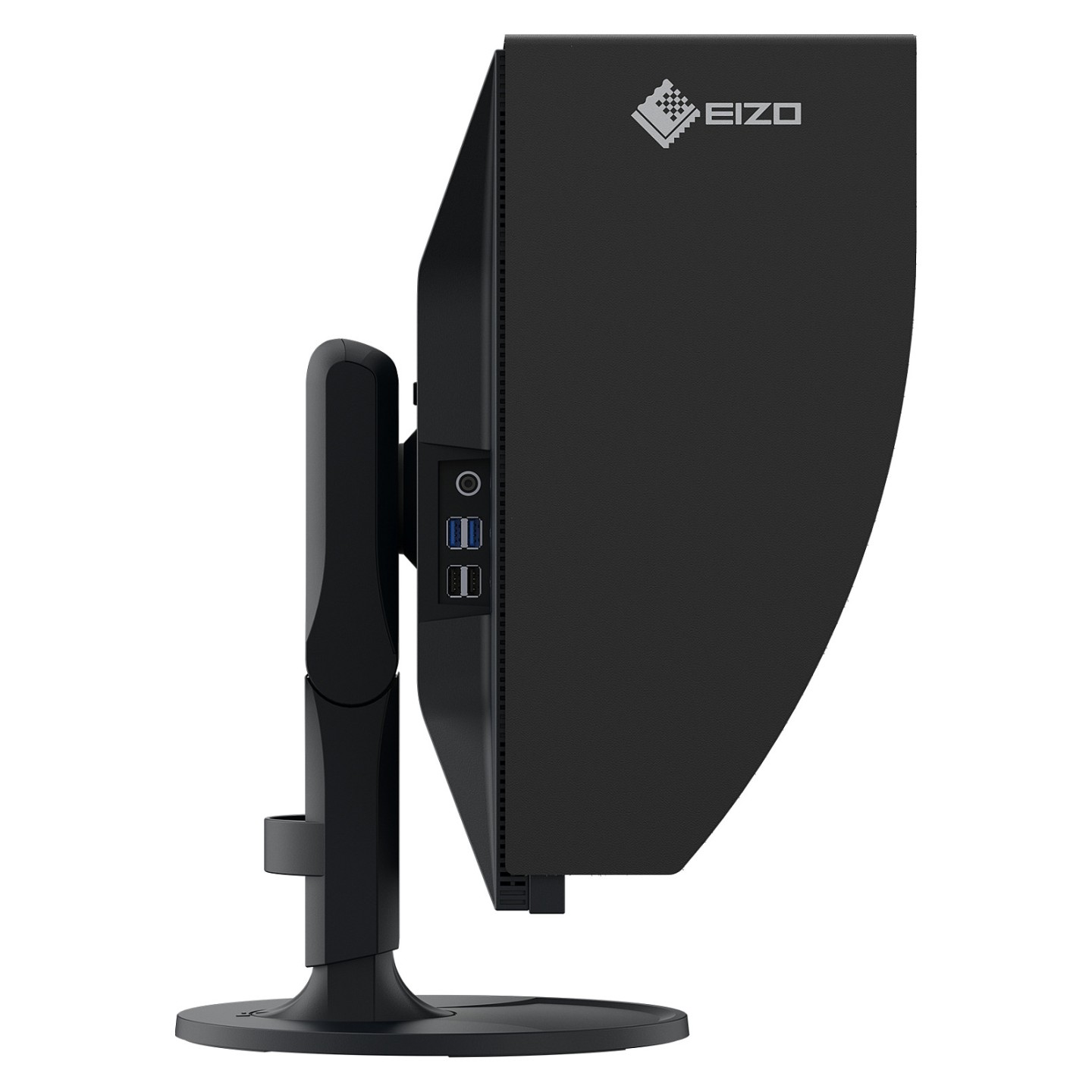

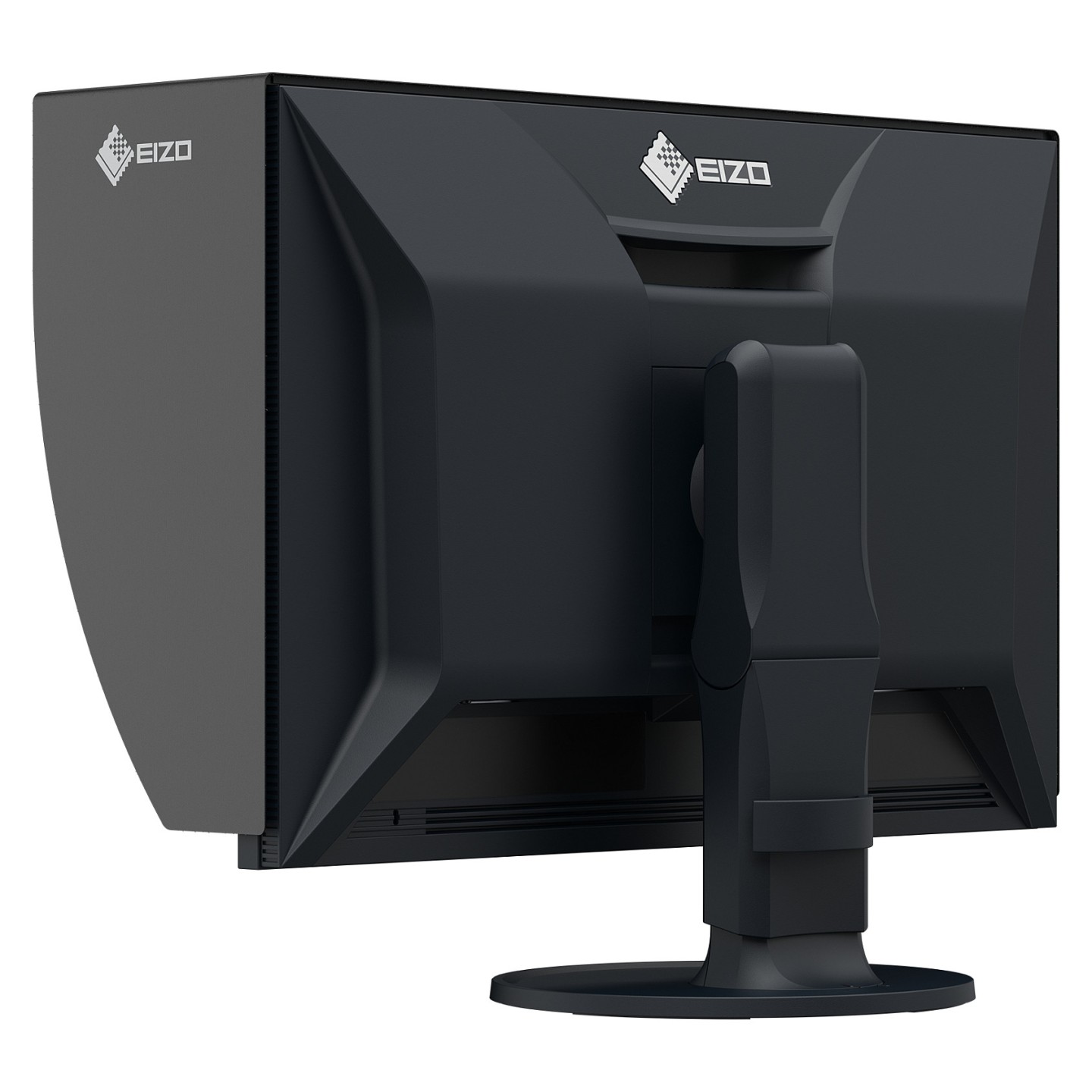

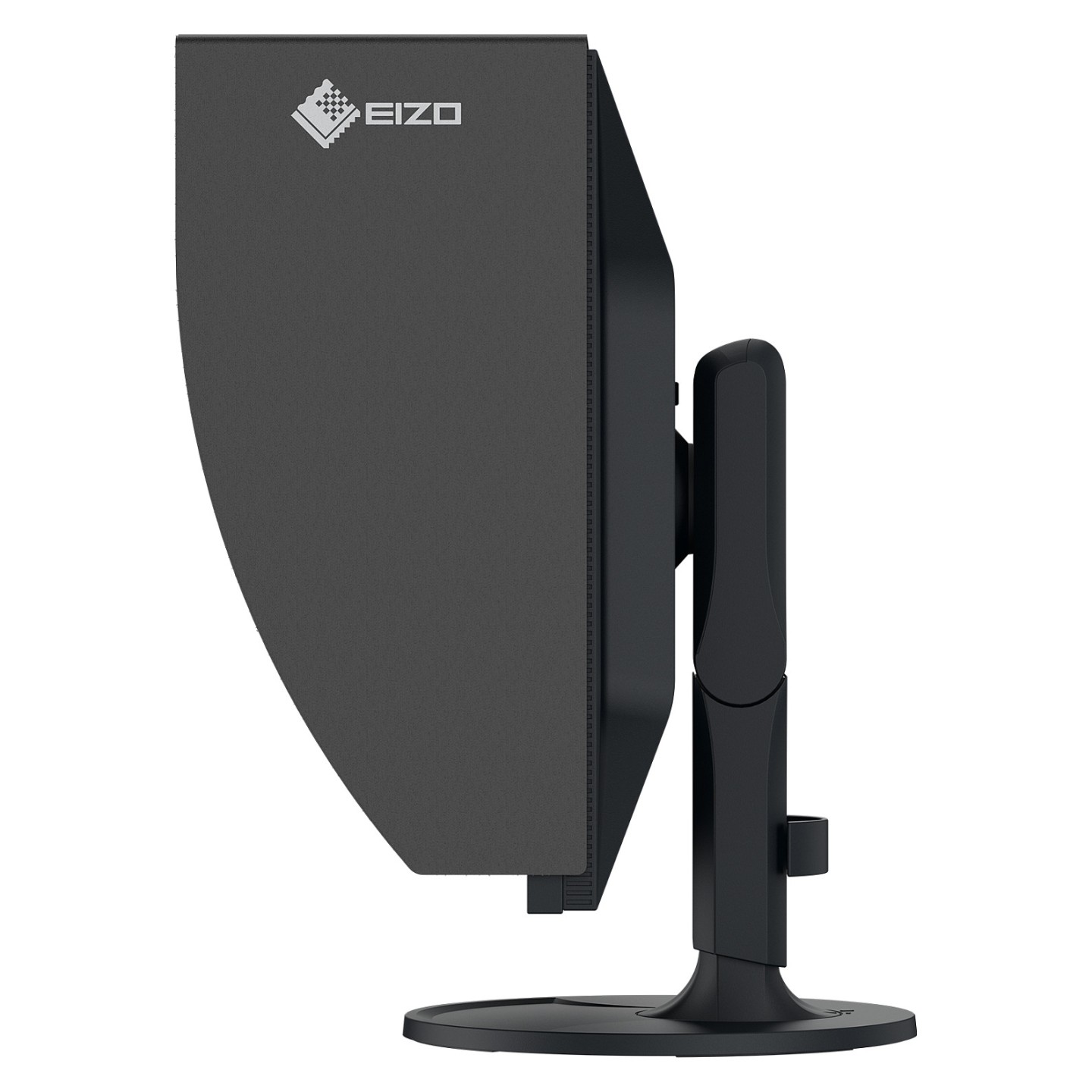

Eizo CG2400SV (61.1 cm (24.1 Zoll). schwarz. WUXGA. IPS. HDMI. DP. BNC)
EIZO ColorEdge CG2400SV. 61.2 cm (24.1"). 1920 x 1200 Pixel. WUXGA. LCD. 11 ms. Schwarz
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
EIZO ColorEdge CG2400SV. Bildschirmdiagonale: 61.2 cm (24.1"). Display-Auflösung: 1920 x 1200 Pixel. HD-Typ: WUXGA. Bildschirmtechnologie: LCD. Reaktionszeit: 11 ms. Natives Seitenverhältnis: 16:10. Bildwinkel. horizontal: 178°. Bildwinkel. vertikal: 178°. Integrierter USB-Hub. USB-Hub-Version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA-Halterung. Höhenverstellung. Produktfarbe: Schwarz
| Bildschirmdiagonale | 61.2 cm (24.1") |
| Display-Auflösung | 1920 x 1200 Pixel |
| HD-Typ | WUXGA |
| Natives Seitenverhältnis | 16:10 |
| Bildschirmtechnologie | LCD |
| Panel-Typ | IPS |
| Feature | Integrierter Kalibrierungssensor |
| Typ der Hintergrundbeleuchtung | W-LED |
| Helligkeit (typisch) | 400 cd/m² |
| Reaktionszeit | 11 ms |
| Bildschirmform | Flach |
| Unterstützte Grafik-Auflösungen | 1920 x 1200 (WUXGA) |
| Unterstützte Video-Modi | 1080i. 1080p. 720p. 576p. 576i. 480p. 480i |
| Kontrastverhältnis | 1800:1 |
| Maximale Bildwiederholrate | 60 Hz |
| Bildwinkel. horizontal | 178° |
| Bildwinkel. vertikal | 178° |
| Anzahl der Farben des Displays | 1.07 Milliarden Farben |
| Pixel Abstand | 0.27 x 0.27 mm |
| Pixeldichte | 94 ppi |
| Sichtbare Größe (horizontal) | 51.8 cm |
| Sichtbare Größe (vertikal) | 32.4 cm |
| Digital horizontale Frequenz | 26 - 76 kHz |
| Digital vertikale Frequenz | 23 - 61 Hz |
| Bildschirmdiagonale (cm) | 61.1 cm |
| Technologie mit hohem Dynamikbereich (HDR) | Hybrid Log-Gamma (HLG) |
| Farbtiefe | 10 Bit |
| Farbraumstandard | Adobe RGB. DCI-P3. Rec. 709. sRGB. EBU |
| sRGB Abdeckung (klassisch) | 100% |
| Adobe RGB-Abdeckung | 97% |
| Farbpalette DCI-P3 | 99% |
| Marktpositionierung | Grafikdesign |
| Produktfarbe | Schwarz |
| Fußfarbe | Schwarz |
| USB-Hub-Version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
| USB-Upstream-Porttyp | USB Typ-B |
| Anzahl der vorgeschalteten Steckplätze | 2 |
| Anzahl der Upstream-Ports USB Typ-B | 2 |
| Anzahl der nachgeschalteten Steckplätze vom Typ USB-A | 4 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| Kopfhörer-Anschluss | 3.5 mm |
| Panel-Montage-Schnittstelle | 100 x 100 mm |
| Einstellbare Höhe (max.) | 15.5 cm |
| Pivot Winkel | -90 - 90° |
| Schwenkwinkelbereich | 0 - 344° |
| Neigungswinkelbereich | -5 - 35° |
| Menüsprachen | Deutsch. Englisch. Spanisch. Französisch. Italienisch. Schwedisch |
| Energieeffizienzklasse (SDR) | Nicht verfügbar |
| Energieeffizienzklasse (HDR) | Nicht verfügbar |
| Stromverbrauch (Standardbetrieb) | 18 W |
| Stromverbrauch (Standby) | 0.5 W |
| Stromverbrauch (max.) | 64 W |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Betriebstemperatur | 0 - 35 °C |
| Temperaturbereich bei Lagerung | -20 - 60 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 80% |
| Luftfeuchtigkeit bei Lagerung | 10 - 90% |
| Gerätebreite (inkl. Standfuß) | 554.4 mm |
| Gerätetiefe (inkl. Standfuß) | 245 mm |
| Gerätehöhe (inkl. Standfuß) | 408.1 mm |
| Gewicht (inklusive Standfuß) | 8.5 kg |
| Breite (ohne Standfuß) | 554.4 mm |
| Tiefe (ohne Standfuß) | 70.2 mm |
| Höhe (ohne Standfuß) | 374.1 mm |
| Gewicht (ohne Standfuß) | 5.5 kg |
| Mitgelieferte Kabel | HDMI. USB Typ-A auf USB Typ-B. AC |
| Garantiezeit | 5 Jahr(e) |
| Look-up-Tabelle (LUT) Farbtiefe | 16 |
| Konformitätsbescheinigungen | CB. CCC. CE. China RoHS. Eidgenössische Kommunikationskommission (FCC). ICES. PSE. RCM. RoHS. TÜV mark. UKCA. VCCI. WEEE |
| Zertifizierung | CE. UKCA. CB. TÜV/GS. TÜV/Ergonomics (includingISO 9241-307). RCM. cTÜVus. FCC-B. CAN ICES-3 (B).TÜV/S. PSE. VCCI-B. RoHS. WEEE. China RoHS. CCC |
| Warentarifnummer (HS) | 85285210 |
