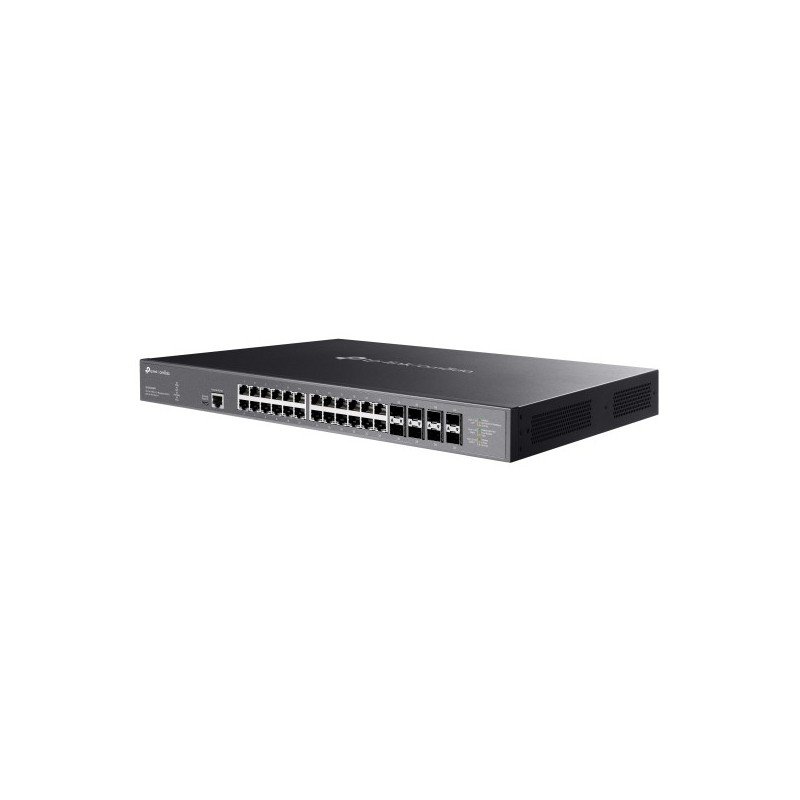

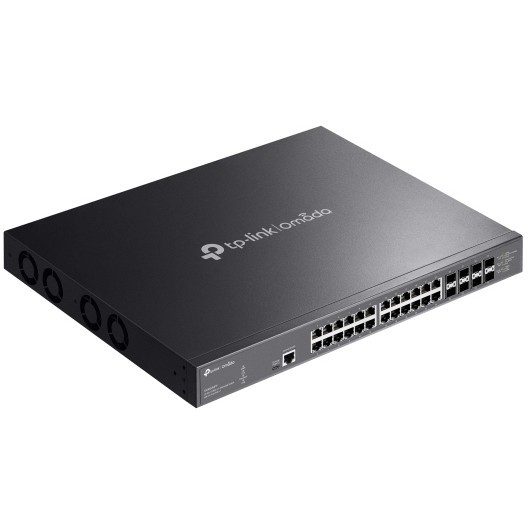

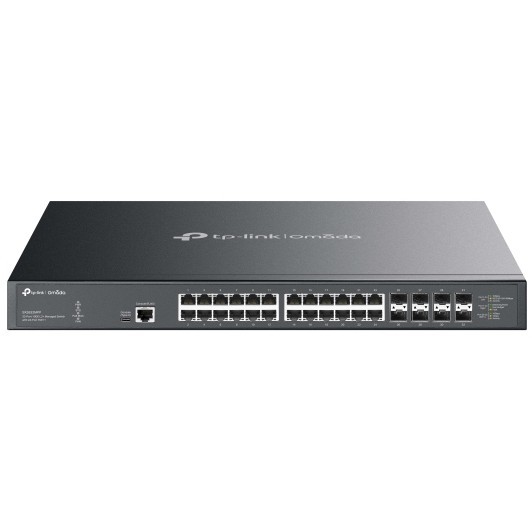

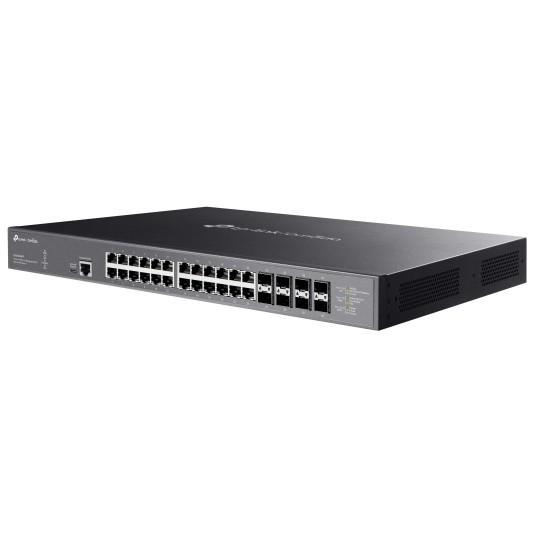

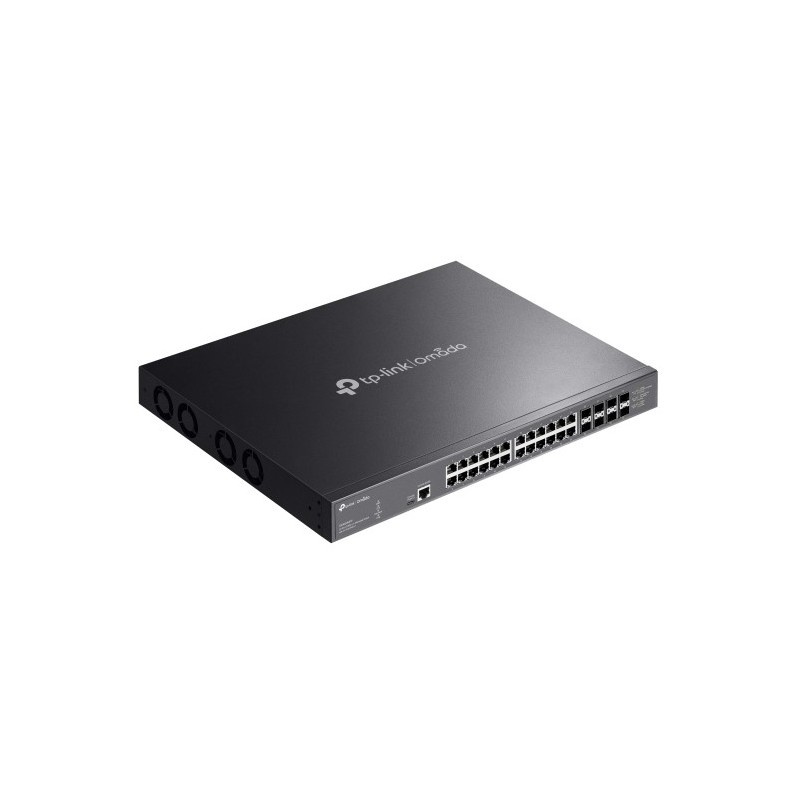

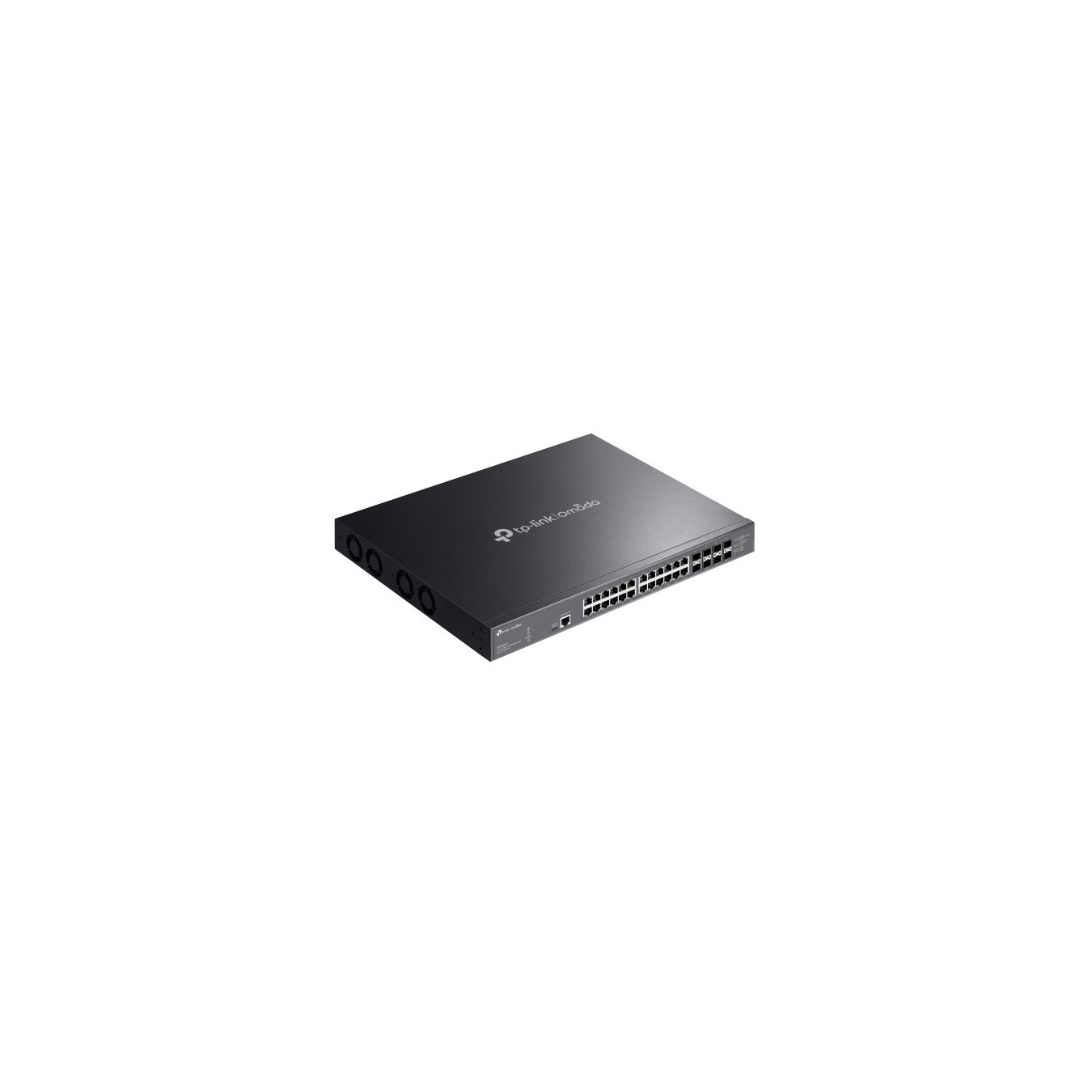

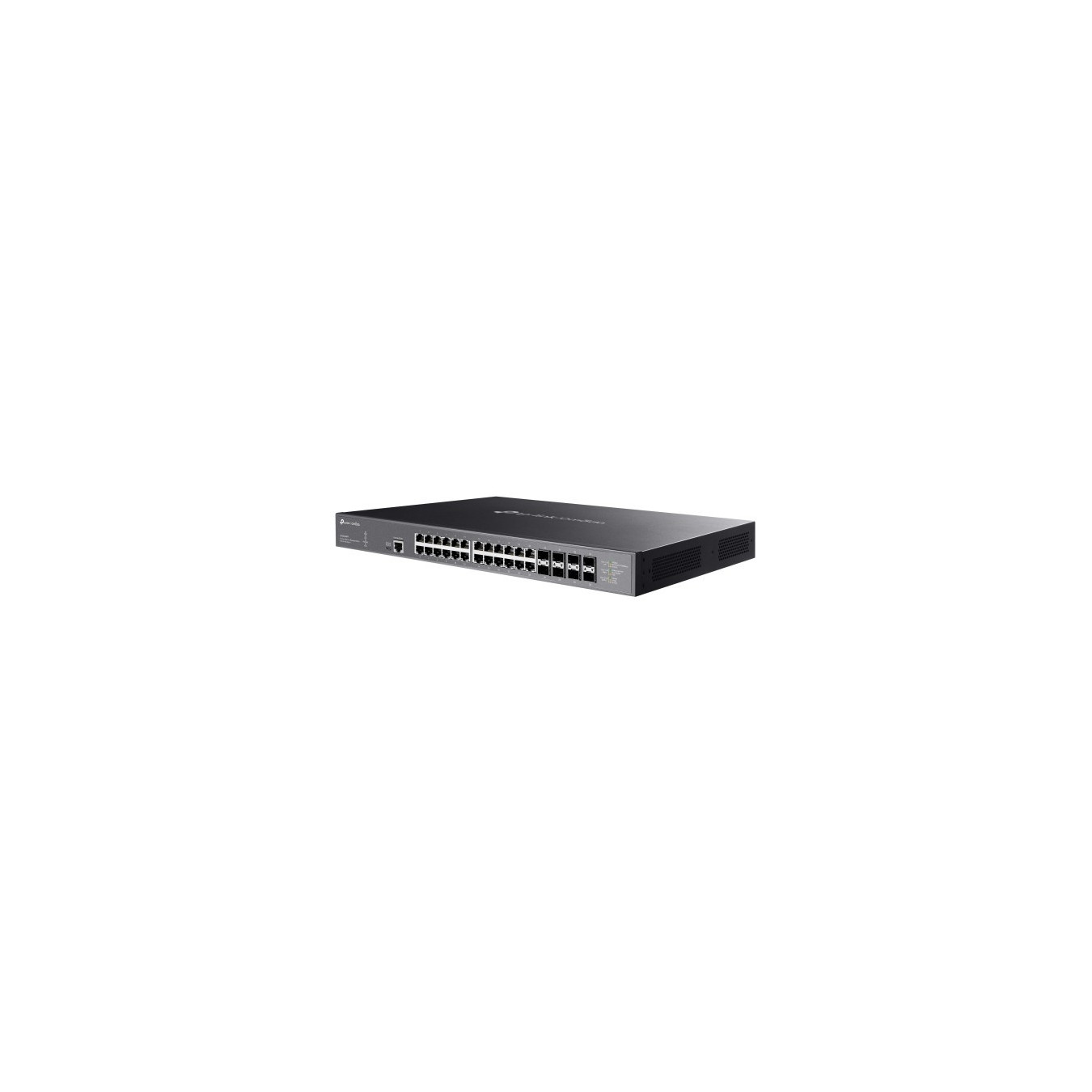

TP-Link Omada Switch SX3832MPP - 32-Port 10G L2+ Managed, 24x PoE++ (802.3bt), 8x SFP+, Rackmount/DIN-rail
32-Port 10G L2+ managed switch (SX3832MPP) with 24x PoE++ (802.3bt), 8x SFP+ uplinks, 640 Gbps switching capacity, RJ-45/USB-C console; rackmount/DIN-rail.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 24. Installed SFP+ modules quantity: 8. Console port: RJ-45/USB Type-C. MAC address table: 32000 entries. Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1af. IEEE 802.1p. IEEE 802.1x. IEEE 802.3ah. IEEE 802.3at..... Power over Ethernet (PoE). Rack mounting. Form factor: DIN rail
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Screws included |
| MIB support | RFC1213. RFC2233. RFC1643. RFC1493. RFC2674. RFC2819. RFC2021. RFC2620. RFC2618. RFC2925 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| 2.5G Ethernet (copper) ports quantity | 24 |
| 10G Ethernet (copper) ports quantity | 24 |
| Installed SFP+ modules quantity | 8 |
| Console port | RJ-45/USB Type-C |
| Networking standards | IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1af. IEEE 802.1p. IEEE 802.1x. IEEE 802.3ah. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bt. IEEE 802.3x |
| Address Resolution Protocol (ARP) entries (max) | 510 |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Virtual LAN features | MVRP. Private VLAN. SSID-based VLAN assignment. VLAN Identifier ( VLAN ID). Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 640 Gbit/s |
| Forwarding rate | 240 Mpps |
| MAC address table | 32000 entries |
| Number of queues | 8 |
| Jumbo frames | 9 |
| Packet buffer memory | 24 MB |
| DHCP features | DHCP relay. DHCP server. DHCP snooping. DHCPv6 client. DHCPv6 snooping |
| Security algorithms | HTTPS. SNMP. SNMPv2. SNMPv3. SSH. SSL/TLS |
| Authentication | Guest VLAN |
| Authentication type | AAA. RADIUS. TACACS+ |
| Queue scheduling algorithms | Strict Priority Queue (SPQ). WRR+SP. Weighted Round Robin (WRR) |
| Multicast Listener Discovery (MLD) snooping | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6. IPv6 SNMP. IPv6 SSH. IPv6 TFTP. IPv6 Telnet. IPv6 ping. IPv6 tracert |
| Form factor | DIN rail |
| Product colour | Black |
| Housing material | Metal |
| Number of fans | 4 fan(s) |
| Minimum system requirements | Microsoft® Windows® 98SE. NT. 2000. XP. Vista™ or Windows 7/8/10/11. MAC® OS. NetWare®. UNIX® or Linux. |
| Power source | AC |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 953.7 W |
| Power consumption (max) | 1010.2 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 770 W |
| Packaging content | Console Cable |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 3444.7 BTU/h |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Cables included | Power |
| Sustainability organizations | Accountability |
| Compliance certificates | CE. Federal Communications Commission (FCC). RoHS |
