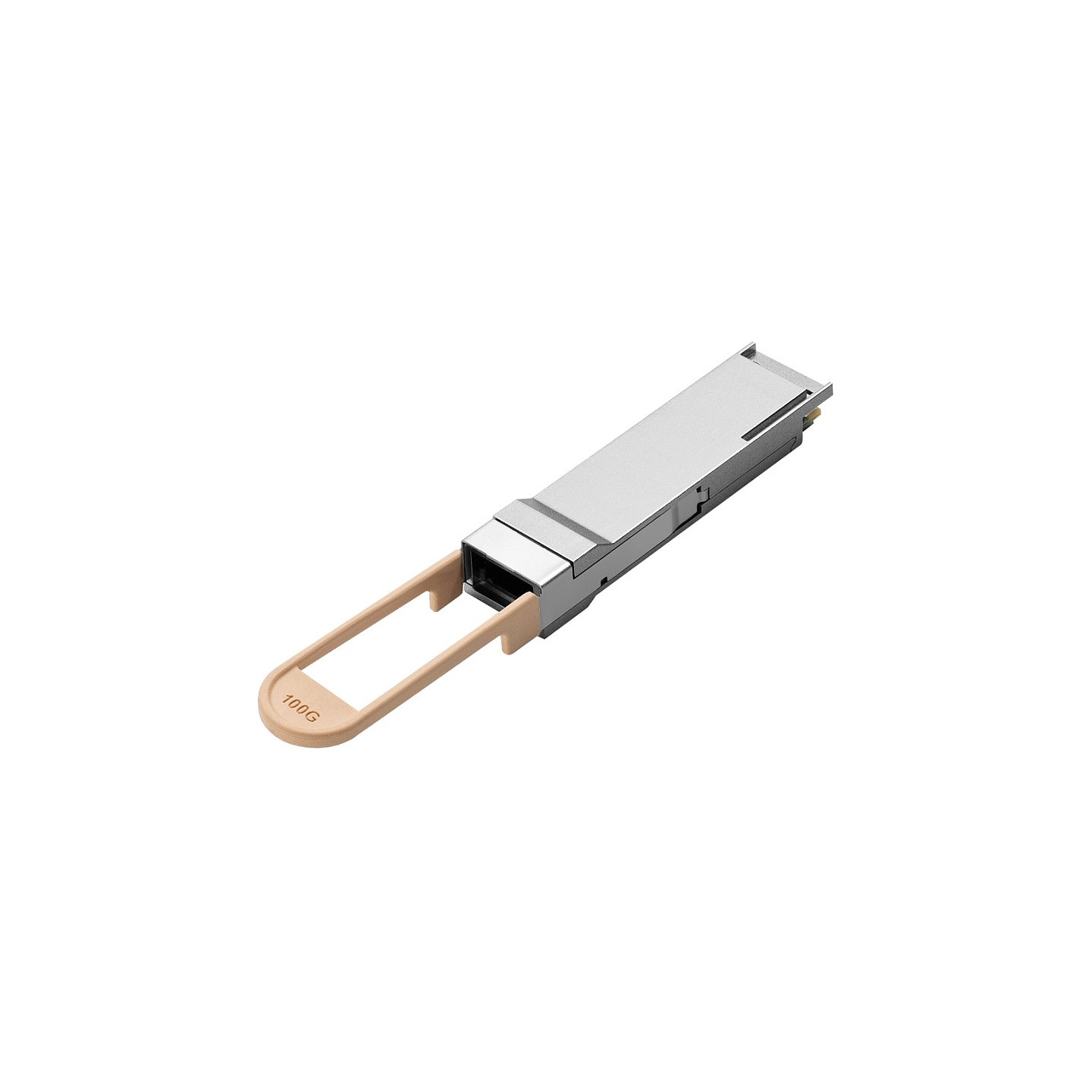

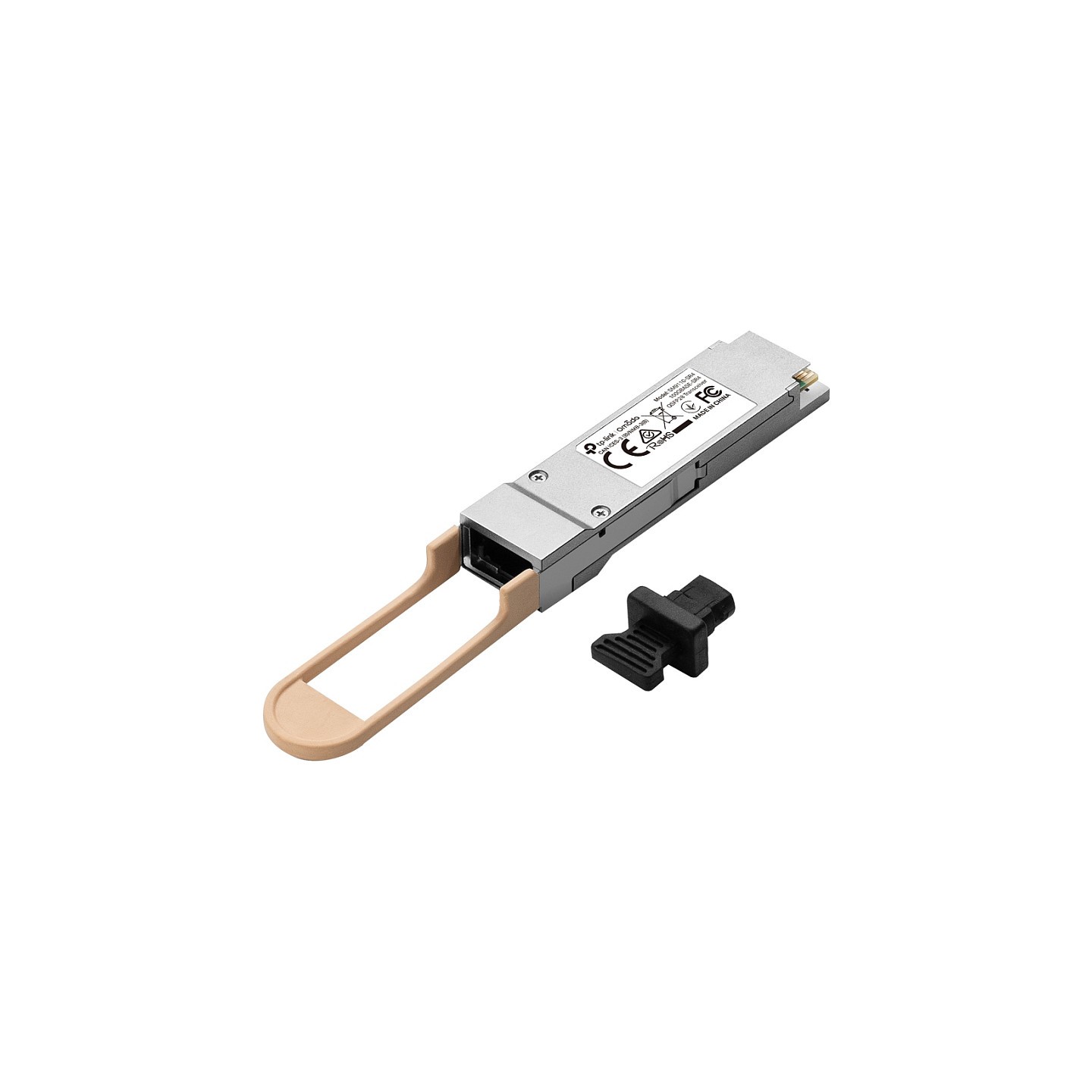

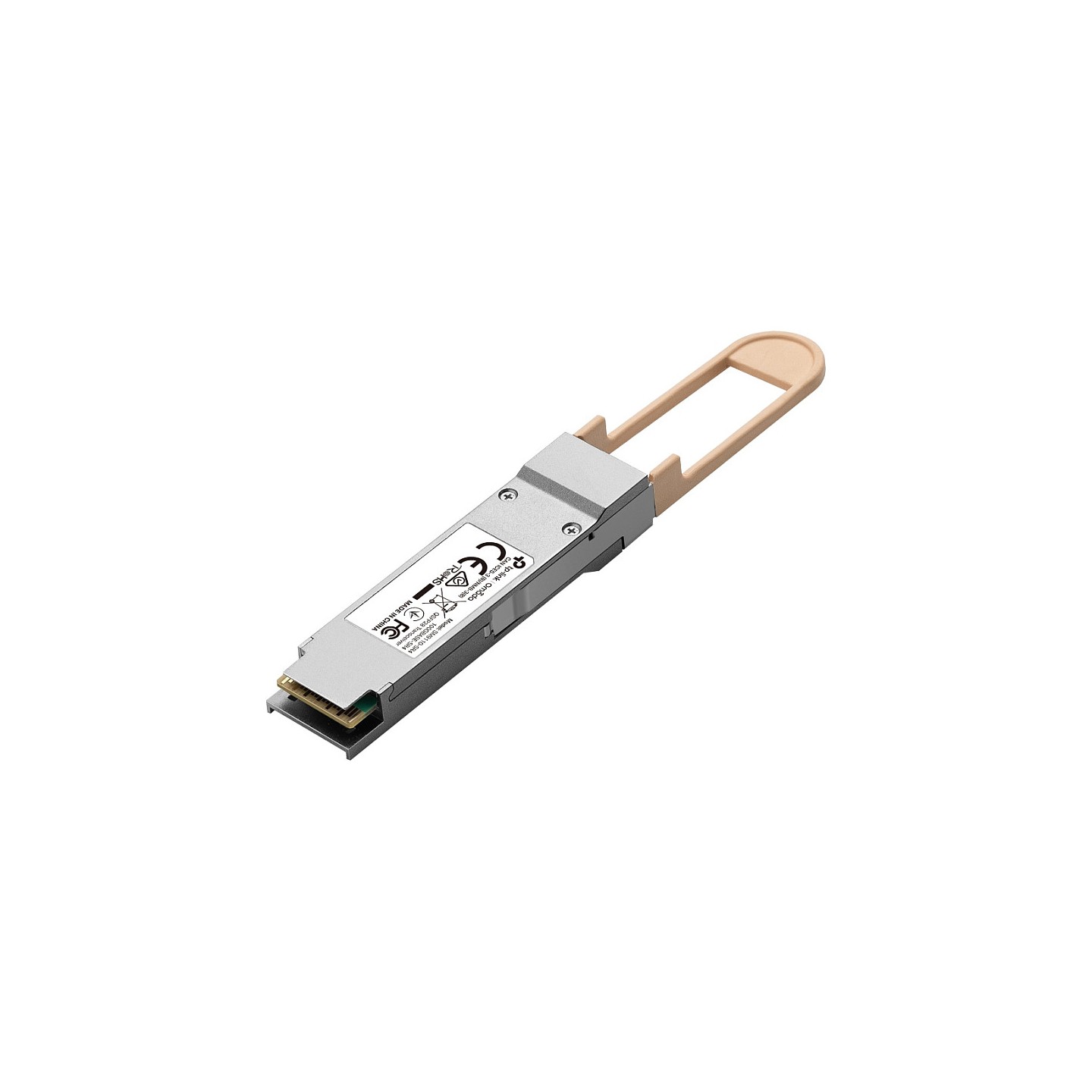

TP_Link Omada 100GBASE-SR4 QSFP28 Transceiver
TP-Link Omada SM9110-SR4. Faseroptik. 100000 Mbit/s. QSFP28. MPO-12. MTP. 50/125 µm. SR4
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link Omada SM9110-SR4. SFP Transceiver-Typ: Faseroptik. Maximale Datenübertragungsrate: 100000 Mbit/s. Schnittstelle: QSFP28. Produktfarbe: Metallisch. Formfaktor: QSFP28. Eingangsspannung: 3.3 V. Konformitätsbescheinigungen: CE. Eidgenössische Kommunikationskommission (FCC). RoHS. Zertifizierung: QSFP28 MSA. SFF-8665. SFF-8636. SFF-8436. CPRI. eCPRI. TCP/IP. Breite: 124 mm. Tiefe: 18.4 mm. Höhe: 11.7 mm
| SFP Transceiver-Typ | Faseroptik |
| Maximale Datenübertragungsrate | 100000 Mbit/s |
| Schnittstelle | QSFP28 |
| Feature | Benutzerhandbuch |
| Optischer Kabelverbinder | MPO-12. MTP |
| Unterstützte Faserkabeldurchmesser (Kern/Mantel) | 50/125 µm |
| SFP-Transceiver-Standard | SR4 |
| Maximal mögliche Übertragungsstrecke | 150 m |
| Wellenlänge | 850 nm |
| Tx-Leistung (min) | -8.4 dBmW |
| Tx-Leistung (max) | 2.4 dBmW |
| Ethernet Schnittstellen Typ | 40 Gigabit Ethernet. 100 Gigabit Ethernet |
| Netzstandard | IEEE 802.3ba. IEEE 802.3bm |
| Ethernet-Kabel Verkablungstechnologie | 40GBASE. 100GBASE |
| Produktfarbe | Metallisch |
| Formfaktor | QSFP28 |
| Eingangsspannung | 3.3 V |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC). RoHS |
| Zertifizierung | QSFP28 MSA. SFF-8665. SFF-8636. SFF-8436. CPRI. eCPRI. TCP/IP |
| Minimale Betriebstemperatur | 0 °C |
| Maximale Betriebstemperatur | 70 °C |
| Betriebstemperatur | 0 - 70 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 85% |
| Luftfeuchtigkeit bei Lagerung | 0 - 85% |
| Breite | 124 mm |
| Tiefe | 18.4 mm |
| Höhe | 11.7 mm |
| Menge pro Packung | 1 Stück(e) |
| Ursprungsland | China |
