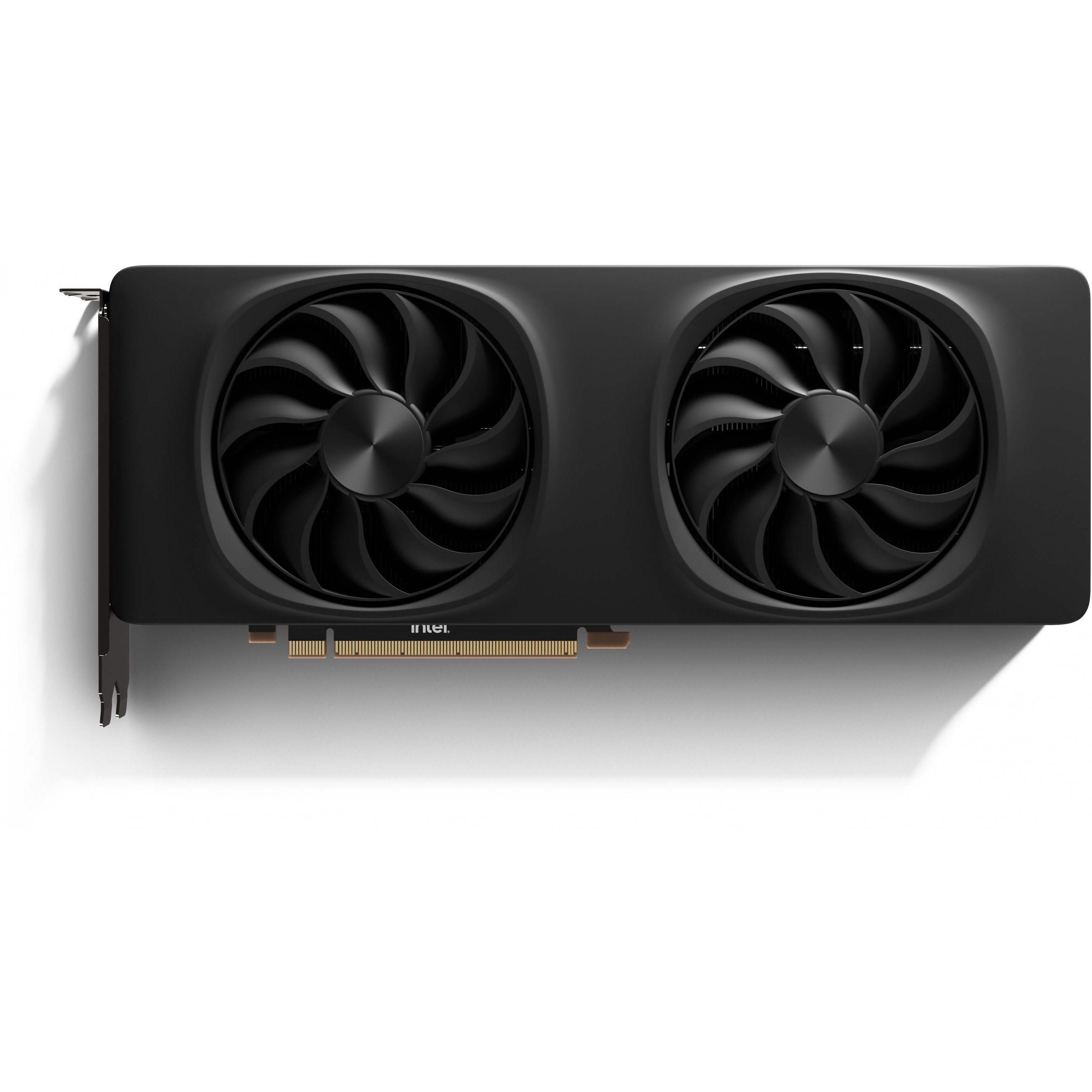

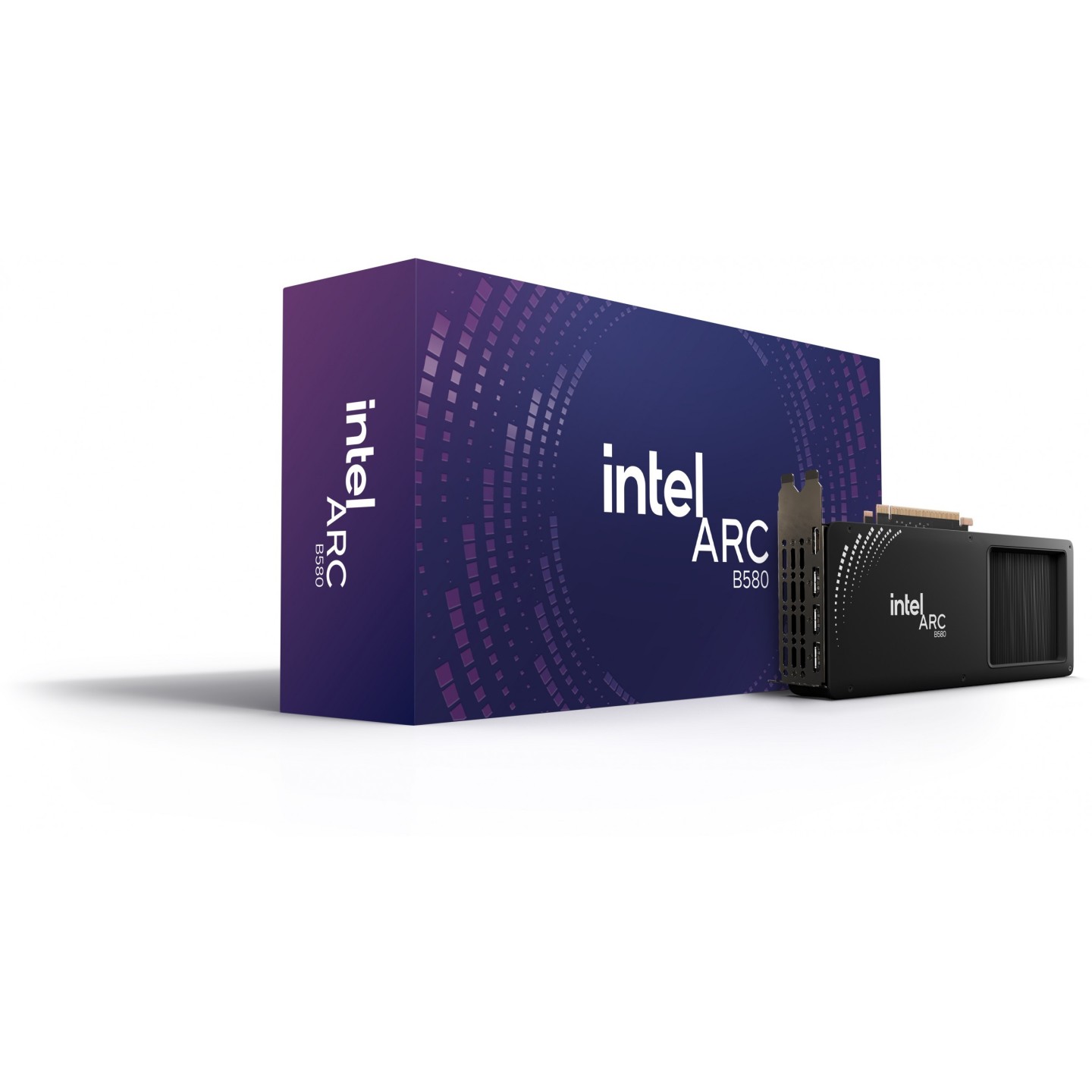

Intel Arc B580 12GB GDDR6 Graphics Card - PCIe 4.0 x8 (Boxed)
Intel Arc B580 12GB GDDR6 GPU delivers exceptional 1440p gaming at 86 FPS, outperforming RTX 4060 by 12%. Features 2670 MHz clock, PCIe 4.0 x8, HDMI 2.1, 3× DisplayPort 2.1, 190W peak power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x8 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
The Intel Arc B580 is a mainstream graphics card designed for 1440p gaming and content creation. With 12GB of GDDR6 memory on a 192-bit bus, it delivers 456 GB/s bandwidth and supports up to 7680×4320 resolution. The card features a 2670 MHz boost clock and operates at a peak power consumption of 190W, making it efficient for systems with 600W PSUs.
Performance testing from 2026 reviews shows the B580 achieving 86 FPS at 1440p in FFXIV, 75 FPS in ray-traced Resident Evil 4, and 47 FPS at 4K in demanding titles. It outperforms the RTX 4060 by approximately 12% at 1440p and delivers 15.6% better performance than the RX 7600. The card supports DirectX 12 Ultimate, OpenGL 4.6, and Intel's XeSS 3 upscaling technology for enhanced gaming experiences.
Connectivity includes 1× HDMI 2.1 and 3× DisplayPort 2.1 outputs, enabling multi-display setups up to 7680×4320. The card measures 272mm in length and 115mm in height with active cooling. It requires PCIe 4.0 x8 slot and a minimum 600W power supply.
- 12GB GDDR6 memory with 456 GB/s bandwidth
- 2670 MHz boost clock, up to 190W peak power
- DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3.0 support
- 1× HDMI 2.1, 3× DisplayPort 2.1 outputs
- Supports up to 7680×4320 resolution
- PCIe 4.0 x8 interface, 600W minimum PSU required
- Active cooling, 272mm length, 115mm height
| GPU Family | Intel Arc |
| GPU Model | Arc B580 |
| Boost Clock Speed | 2670 MHz |
| Memory Capacity | 12 GB |
| Memory Type | GDDR6 |
| Memory Bus Width | 192 Bit |
| Memory Bandwidth | 456 GB/s |
| Maximum Resolution | 7680 x 4320 Pixel |
| PCIe Interface | PCI Express 4.0 x8 |
| HDMI Ports | 1x HDMI 2.1 |
| DisplayPort Ports | 3x DisplayPort 2.1 |
| DirectX Version | 12 Ultimate |
| OpenGL Version | 4.6 |
| OpenCL Version | 3.0 |
| Xe Cores | 20 |
| Intel XMX Engines | 160 |
| Supported Video Formats | AV1, H.264, HEVC/H.265, VP9 |
| Cooling Type | Active (Dual/Triple Fan) |
| Peak Power Consumption | 190 W |
| Typical Power Consumption | 141 W |
| Minimum PSU Requirement | 600 W |
| Card Length | 272 mm |
| Card Height | 115 mm |
| Card Weight | 779 g |
| Color | Black |
| 1440p Gaming Performance (FFXIV) | 86 FPS Average |
| 1440p Ray Tracing Performance (RE4) | 75 FPS Average |
| 4K Gaming Performance | 47 FPS Average |
| Performance vs RTX 4060 | 12% faster at 1440p |
| Performance vs RX 7600 | 15.6% faster overall |
