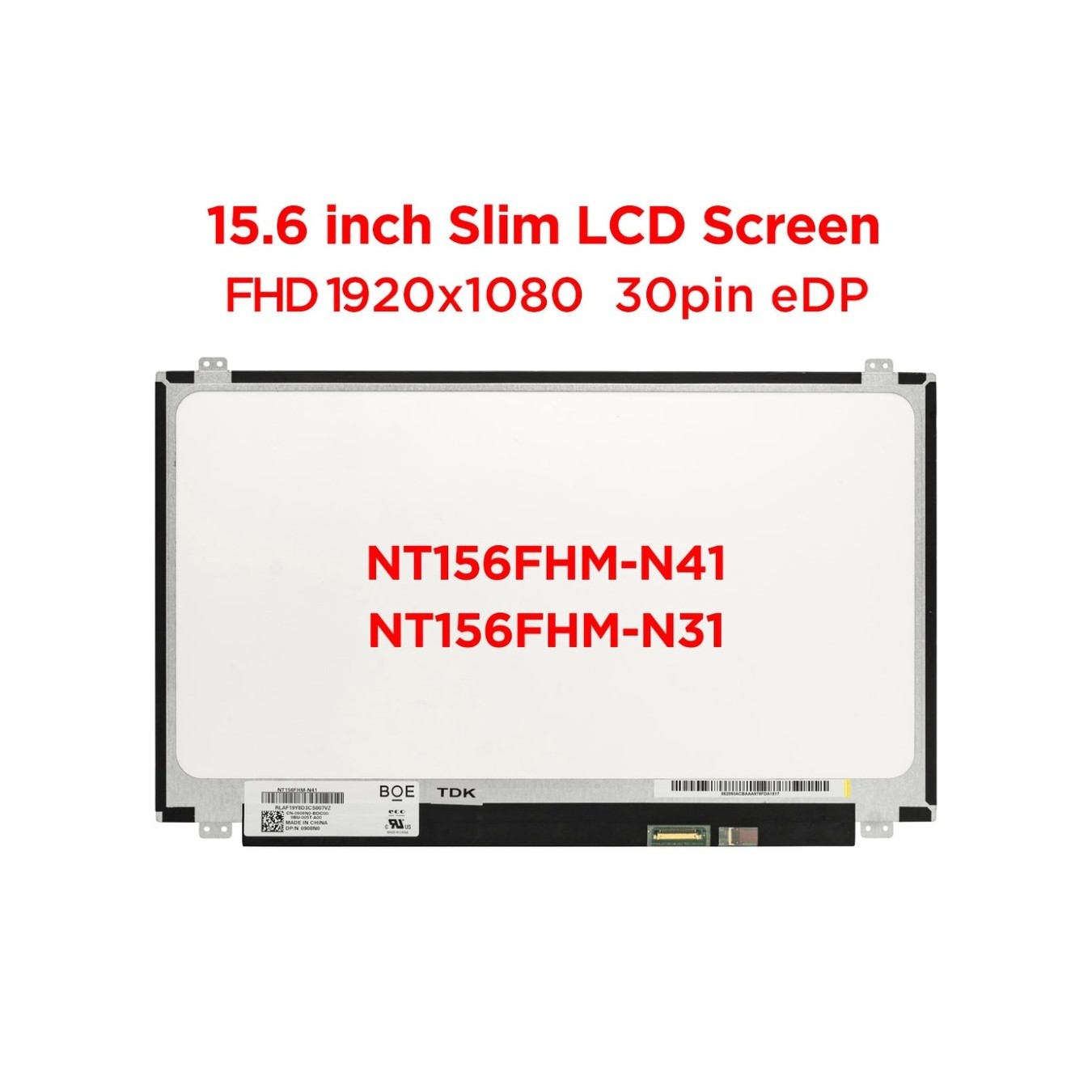

NT156FHM-N41 15.6-inch FHD Laptop LCD Panel (Bulk)
Replacement 15.6-inch BOE NT156FHM-N41 LCD panel with Full HD 1920x1080 resolution, eDP 30-pin connector, LED backlight, and 220 cd/m2 brightness. Matte finish, wide viewing angles, new condition for Lenovo and compatible laptops.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Laptop Replacement Parts - Part Type | LCD Panel |
|---|---|
| Laptop Replacement Parts - Compatible Brand | Acer Asus HP Lenovo |
| Laptop Replacement Parts - Screen Size Class | 15.6 inch |
| Laptop Replacement Parts - Part Condition | New (OEM) |
The NT156FHM-N41 is a high-quality 15.6-inch laptop replacement LCD panel manufactured by BOE. It features Full HD resolution (1920x1080) with a 60Hz refresh rate, LED backlight, and eDP interface with 30 pins on the bottom right side. This panel delivers vibrant colors with 6-bit+Hi-FRC color depth and low reflection surface, ideal for everyday laptop use.
Designed as a color active matrix TFT LCD using amorphous silicon TFTs, it offers a typical brightness of 220 cd/m2, 500:1 contrast ratio, and viewing angles of 45/45/20/40 degrees. Weighing just 370g max, it's lightweight and compatible with various Lenovo models and other laptops requiring this panel spec.
Compatible models: Lenovo 10 Dell 1000 HP 15-ac679ur HP 15-ba016ur HP 15-ba051ru HP 15-ba090ur HP 15-bc304ur HP 15-bc305ur HP 15-bc456ur HP 15-br145ur HP 15-bs020ur HP 15-bs085ur HP 15-bs145ur HP 15-bs508ur HP 15-bs597ur HP 15-bw019ur HP 15-bw032ur HP 15-bw036ur HP 15-bw081ur HP 15-bw094ur HP 15-bw522ur HP 15-d HP 15-da0333ur HP 15-db0166ur HP 15-rb501 Lenovo 20dh-a001rt HP 250 G5 HP 250 G5 HP 250-G5 HP 3168ngw Lenovo 320 Lenovo 320-15ikb Lenovo 320-15isk Lenovo 330-15ARR Lenovo 330-15IGM Lenovo 330-15ikb HP 515 Acer 523-80jf HP 650 G3 Lenovo 720 Dell 7567 Dell 7577 Acer a315-21g-47uw Acer a315-21g-61uw Acer A515-41G-1888 Acer A715-71G-51YA Acer A715-71G-523H Acer a715-71g-58yj Acer AN515-31-524G Acer AN515-51-55P9 Acer Aspire 7560G-8358G75Mnkk Acer Aspire AS4810TZ-413G25Mi Acer Aspire E5-553G Acer Aspire E5-575G Acer Aspire ES1-572 Acer Aspire V5-561G-74508G1TMaik Lenovo C200 HP Compaq 2710p HP Compaq 6515b Acer E5-575G Acer E5-575G-504V Acer e5-576g-54t1 Asus E502NA Lenovo E540 Dell E5580 Lenovo E570 Lenovo E580 Acer ES1-572-P61J Acer ex2519 n15w4 Asus FX502VM Asus FX503VD Asus fx504gm Asus G551JM Asus GL502VM Asus GL552JX Asus GL552VW Asus GL552VX Lenovo ideapad 320 15 Lenovo ideapad 320 15isk 80xh01ehrk Lenovo IdeaPad 320-15ABR Lenovo ideapad 320-15ikb Lenovo ideapad 330 Lenovo ideapad 330-15AST Lenovo Ideapad 330-15IKB Lenovo ideapad 500-15ISK Lenovo IdeaPad Y50-70 Lenovo IdeaPad310-15isk Dell inspirion 7537 Dell inspiron 5570 Asus k501u Asus K501UQ Asus K501UX Asus K501UX Asus K501UX-DM201T Dell Latitude E5570 Lenovo M50-70 MSI MS-16J3 MSI ms-16j9 Acer N16Q2 Acer n17c1 Asus N550J Asus N551JB Asus n56jn Asus n580v Asus N580VD HP OMEN 15 Dell p11f Asus P2540UA Asus P2540UV Asus P552LA Asus P552LJ Asus P553UA Asus P553UJ Dell P62F Dell p65f Dell P75F Dell P75G HP Pavilion 15-ab052ur HP Pavilion 15-ab225ur HP ProBook 450 G4 HP ProBook 450 G5 Asus R540 Asus R540UB-DM639T HP RTL8723BE Asus S510UN Toshiba satellite e55-a5114 HP Sleekbook 15-e000sr Asus TP501UA Asus TP501UB Acer Travelmate P255-MG Asus UX510UW Asus UX510UX Lenovo V130-15IKB Acer V3-571G-53236G75Maii Acer V3-572G Acer V3-572G-72PX Lenovo V330-15IKB Acer vn7-571g-73x2 Dell Vostro 15 5568 Acer vx5-591g-76ay iRu w670sh Asus X510UQ Asus X540LA Asus X540LJ Asus X540N Asus X540NA Asus X540NV Asus X540SA Asus X540SC Asus X540UA Asus X540UP Asus X540UV Asus X540YA Asus X541NA Asus X541NA-CQ283T Asus X541NA-GQ283T Asus x541na-gq412t Asus X541NC Asus X541SA Asus X541SC Asus X541U Asus X541UA Asus X541UJ Asus X541UV Asus X542BA Asus X542BP Asus X542U Asus X542UA Asus X542UA Asus X542UQ Asus X542UQ Asus x542uq-dm282t Asus X542UR Asus X542UR Asus X550IU Asus X550JD Asus X550VX Asus x555ba
- Size: 15.6-inch diagonal active area
- Resolution: 1920 x 1080 (FHD)
- Connector: eDP 30-pin (bottom right)
- Backlight: WLED with LED driver
- Finish: Matte (anti-glare)
- Condition: New OEM
- Non-touch screen
| Panel Maker | BOE |
| Size | 15.6 inch |
| Resolution | 1920 x 1080 (FHD) |
| Brightness | 220 cd/m2 (Typ.) |
| Contrast Ratio | 500:1 (Typ.) |
| Viewing Angle | 45/45/20/40 (Typ.) |
| Backlight | WLED, LED Driver |
| Interface | eDP 30-pin |
| Weight | 370g (max) |
| Refresh Rate | 60Hz |
| Color Depth | 6-bit + Hi-FRC |
| Surface | Matte (Anti-glare) |
| Touch | Non-touch |
