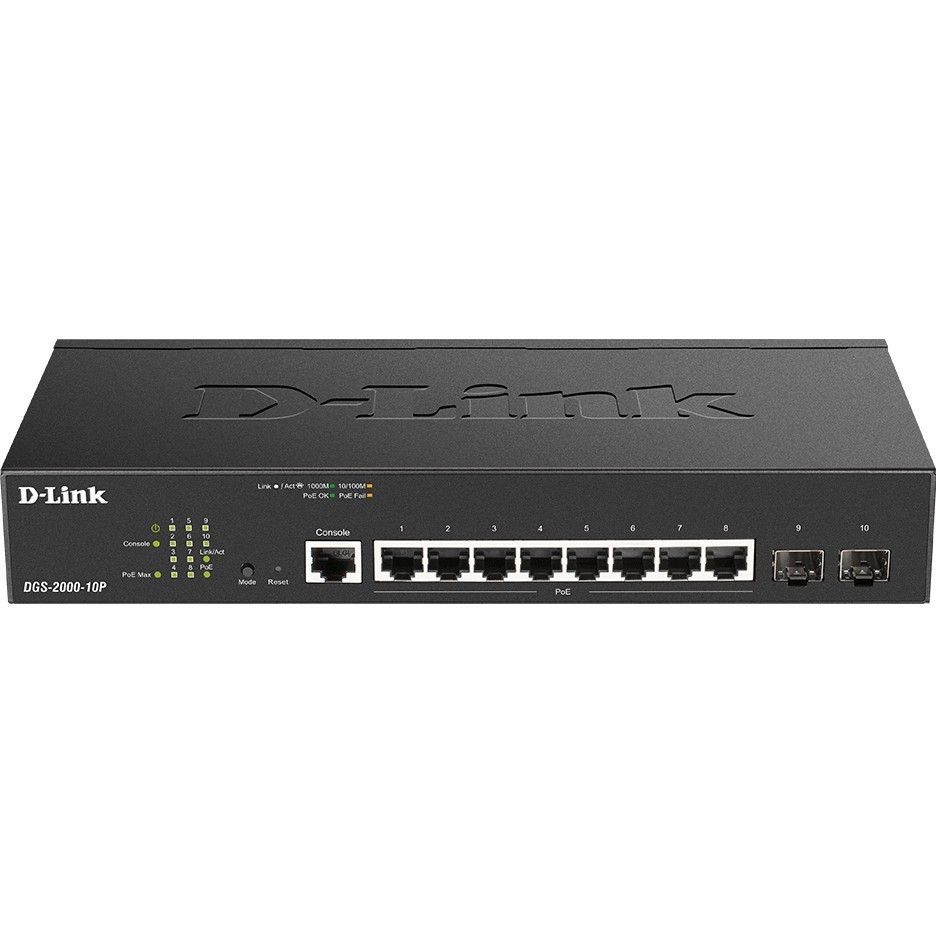

D-Link DGS-2000-10P - 8-Port Gigabit PoE Managed L2/L3 Switch with 2x SFP - 1U Rackmount
Managed D-Link DGS-2000-10P: 8x Gigabit PoE RJ-45 ports, 2x SFP uplinks, L2/L3 features, 54V DC input, 20 Gbps switching capacity, 1U rackmount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 8 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | Yes |
D-Link DGS-2000-10P. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Console port: RJ-45. Full duplex. MAC address table: 8000 entries. Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. DC input voltage: 54 V. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Networking standards | IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | Tagged VLAN |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 8000 entries |
| Packet buffer memory | 4.1 MB |
| DHCP features | DHCP relay. DHCP snooping |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity. Link. Power. Speed |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 277967 h |
| DC input voltage | 54 V |
| Power consumption (typical) | 2.5 W |
| Power consumption (max) | 81.9 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 279.59 BTU/h |
| Width | 280 mm |
| Depth | 126 mm |
| Height | 44 mm |
| Weight | 950 g |
| Harmonized System (HS) code | 85176990 |
