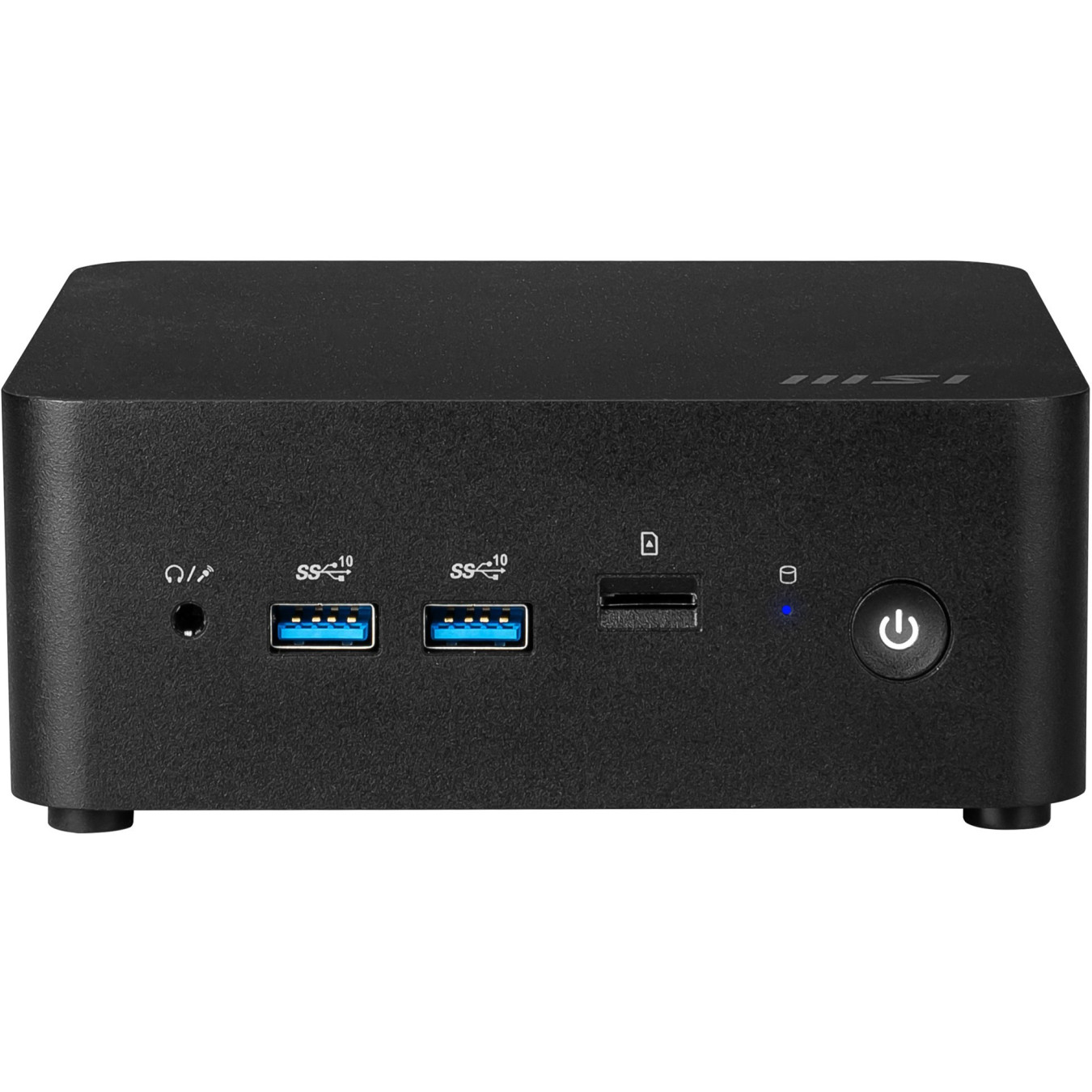

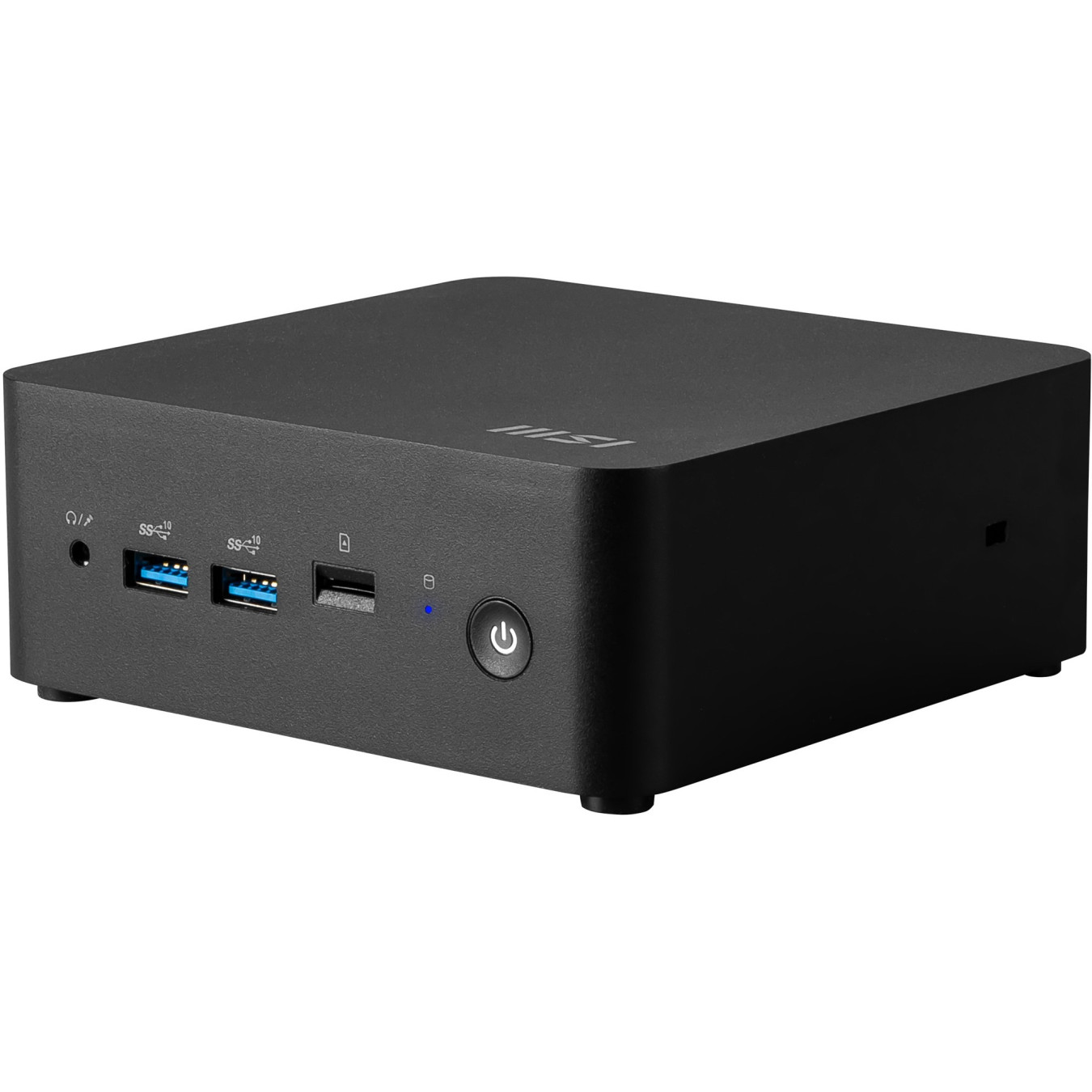

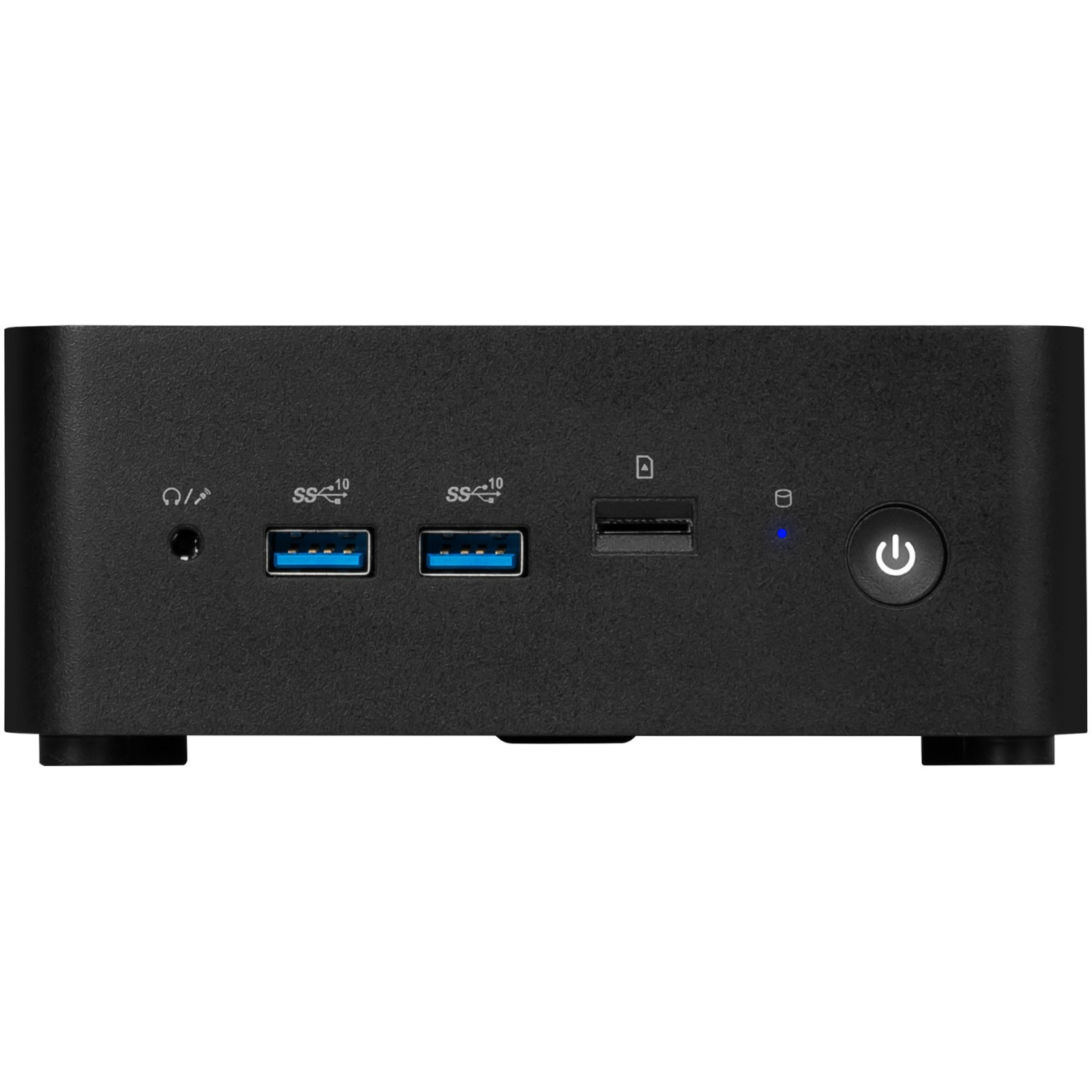

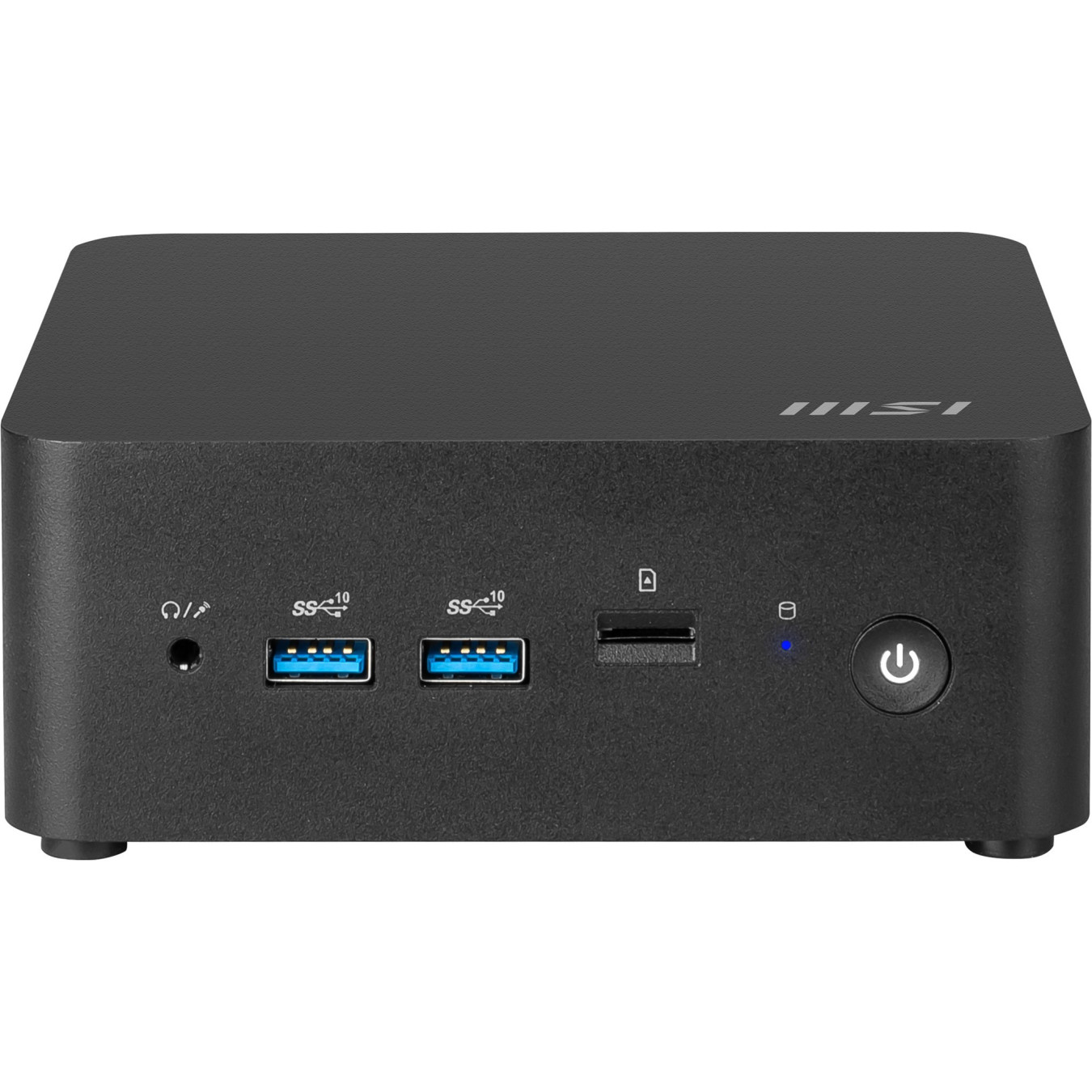

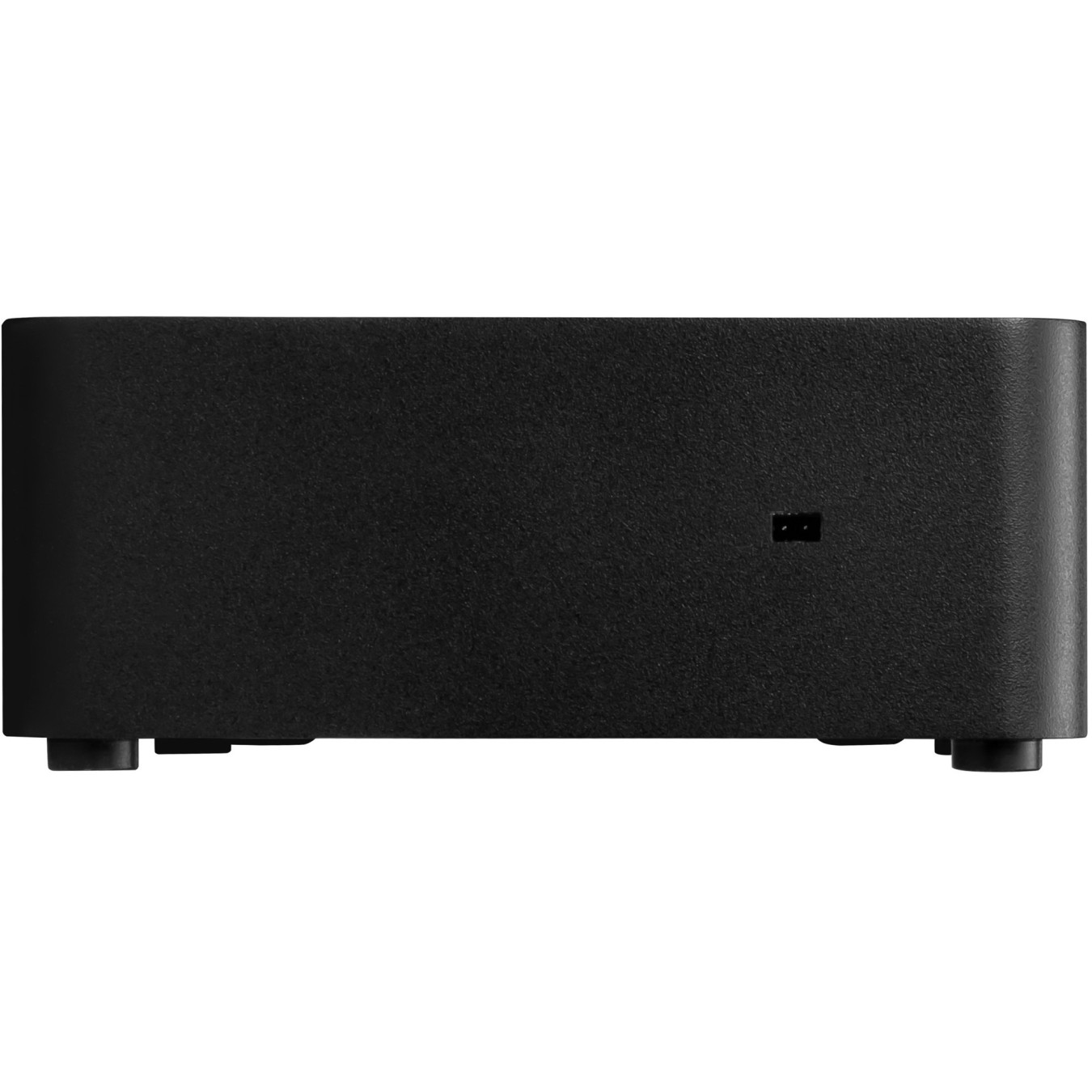

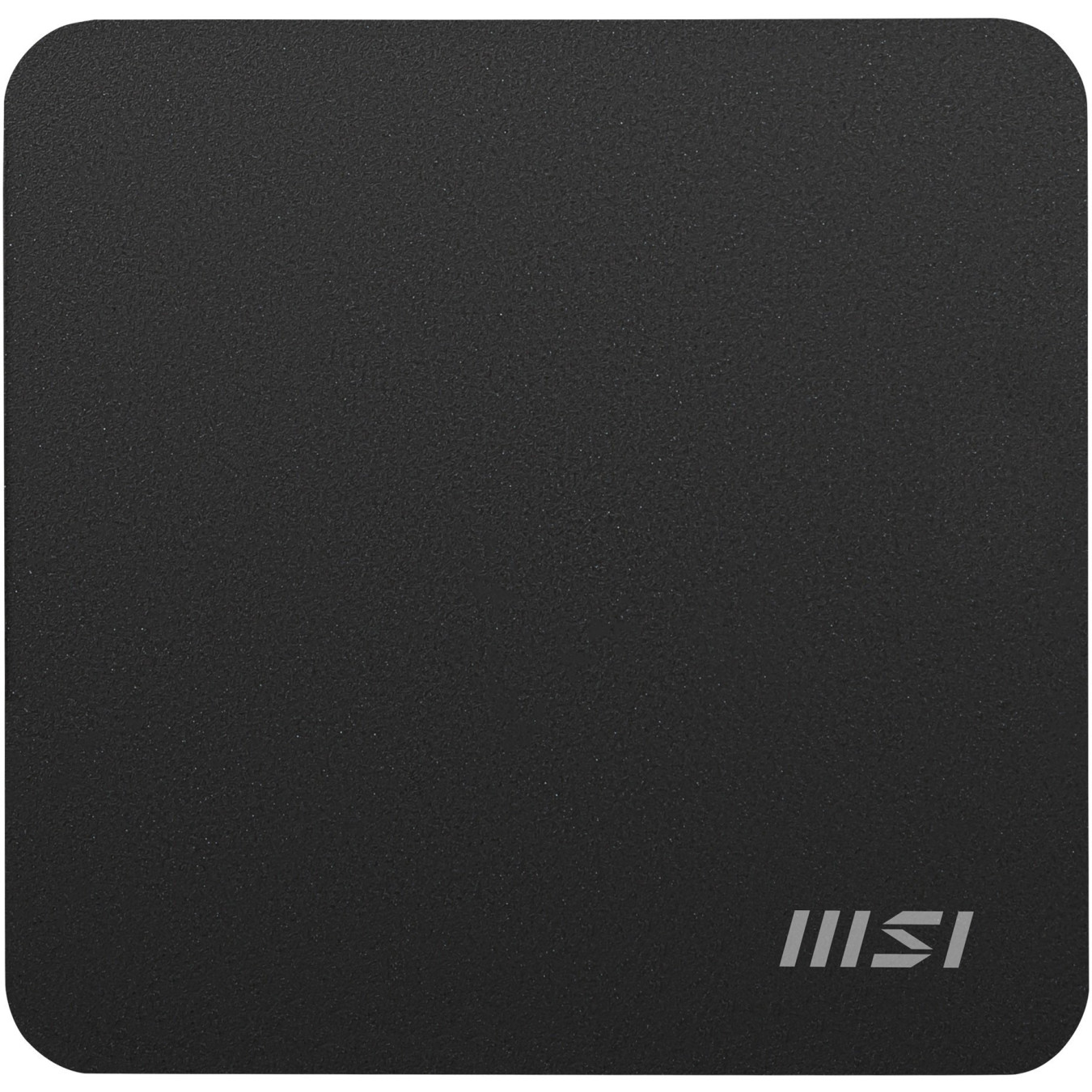

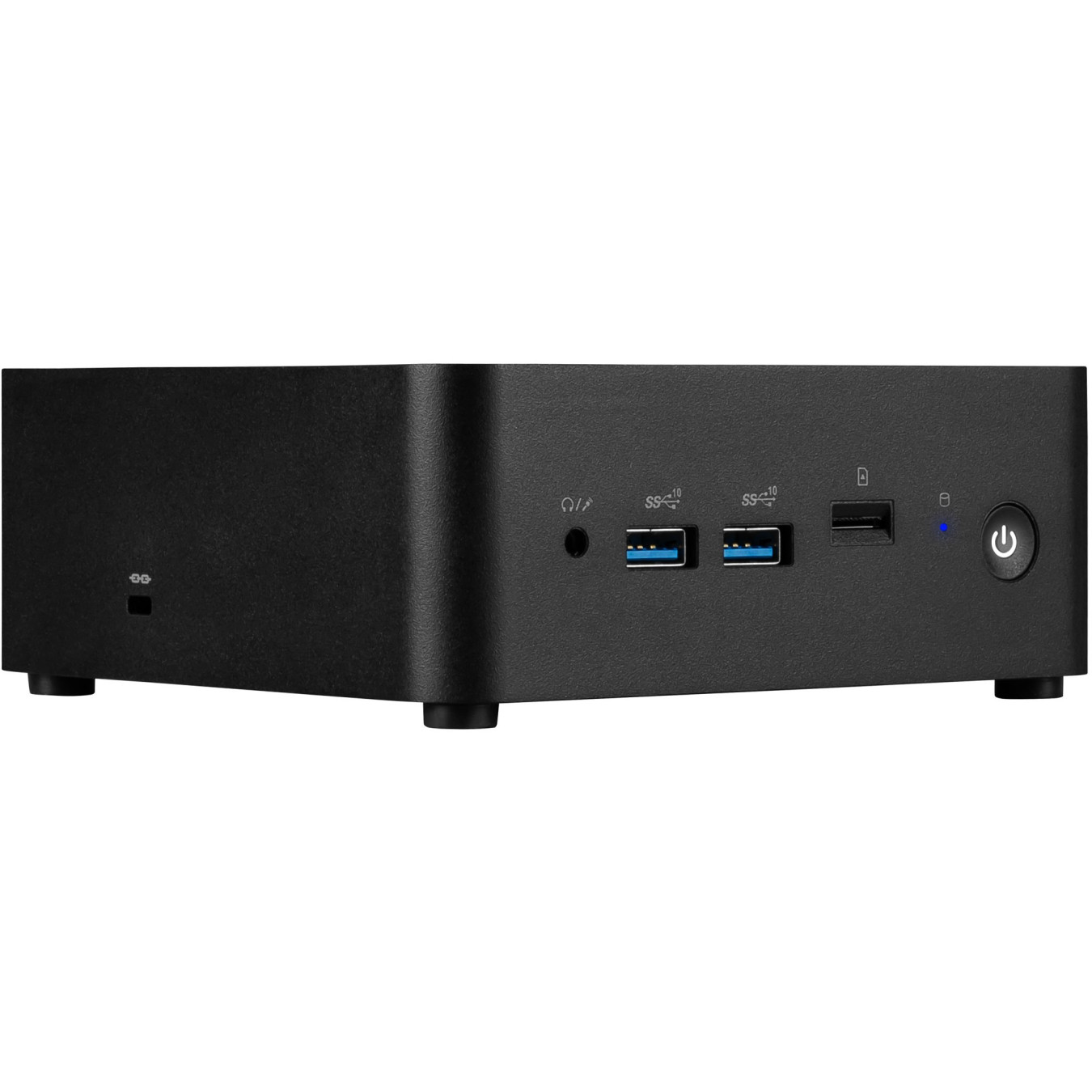

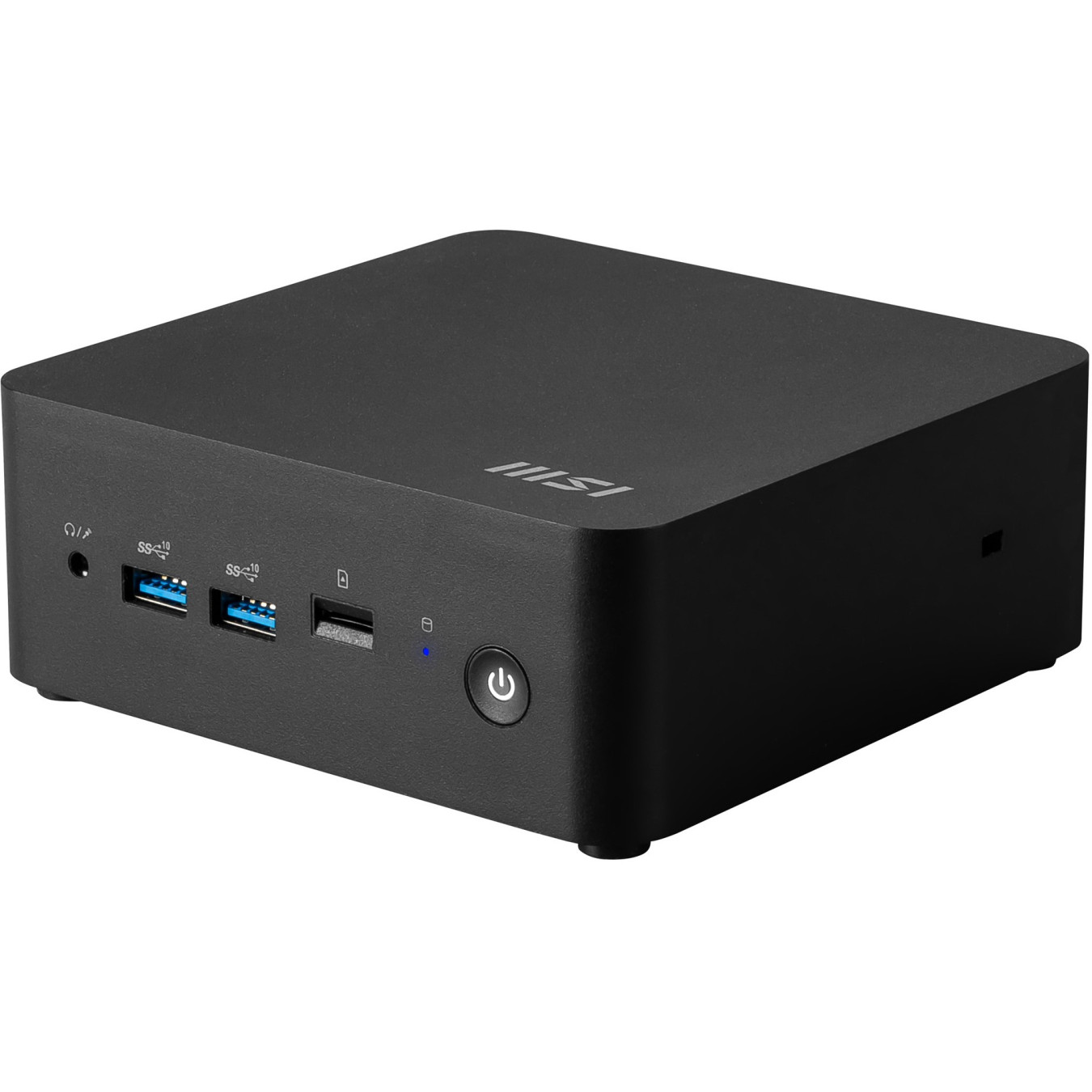

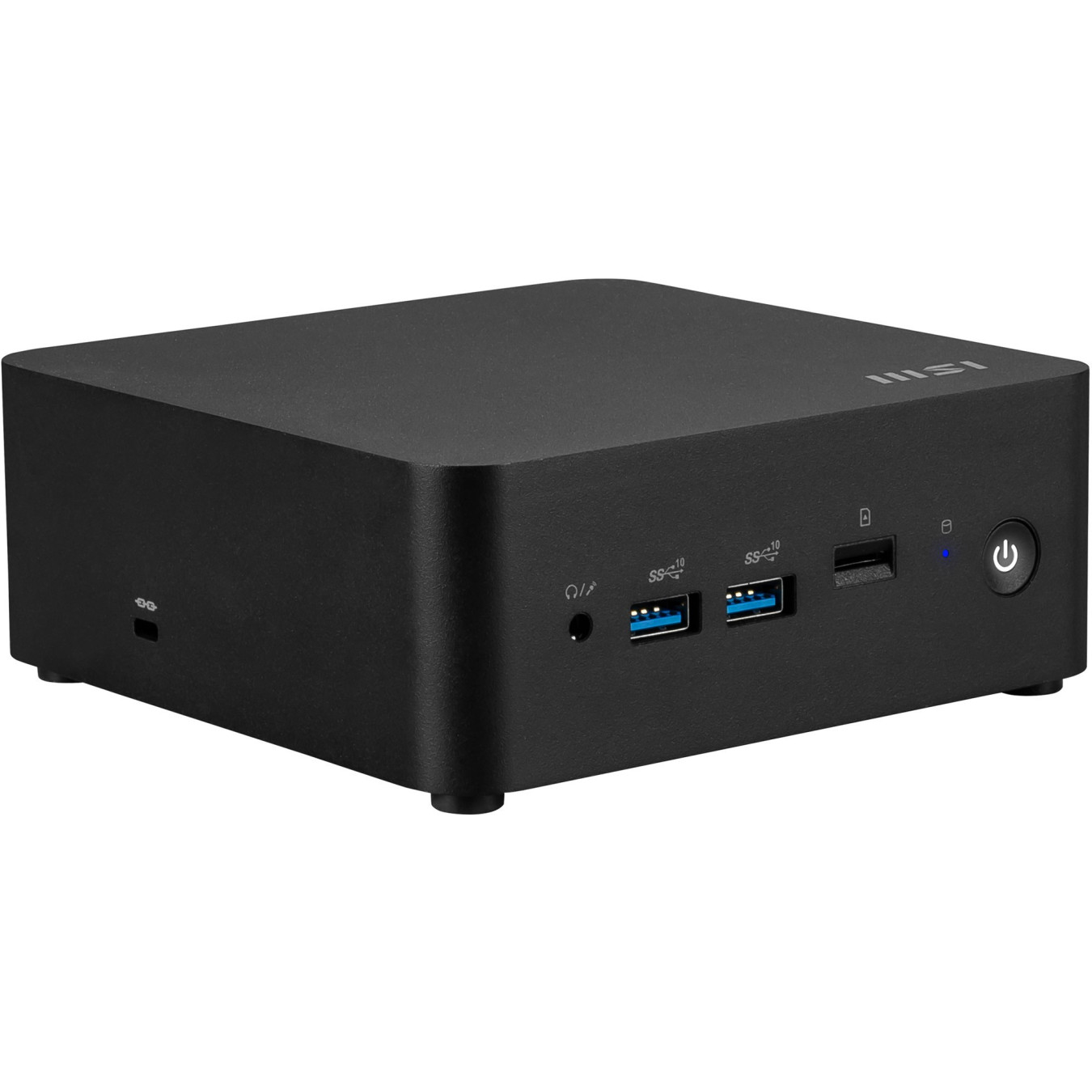

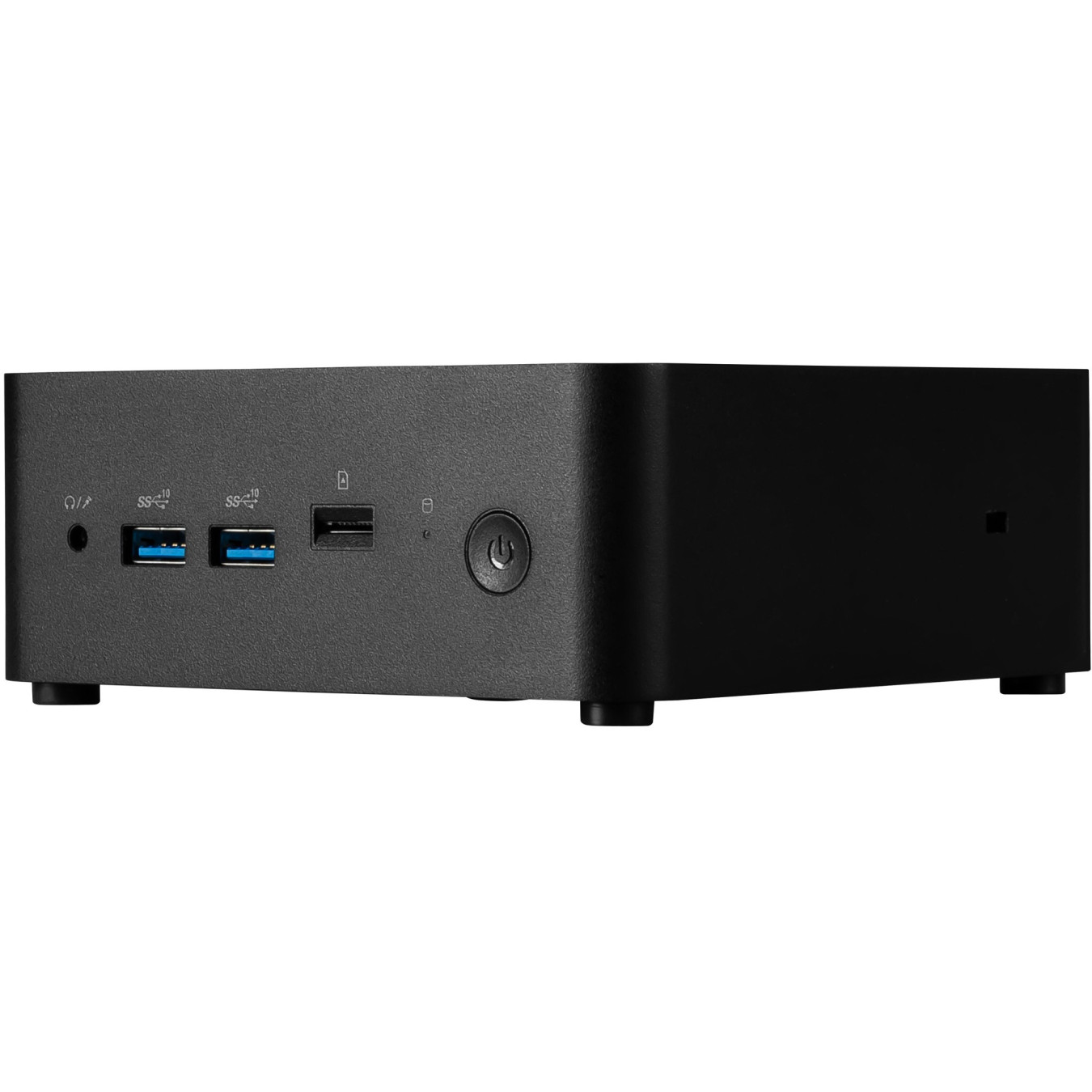

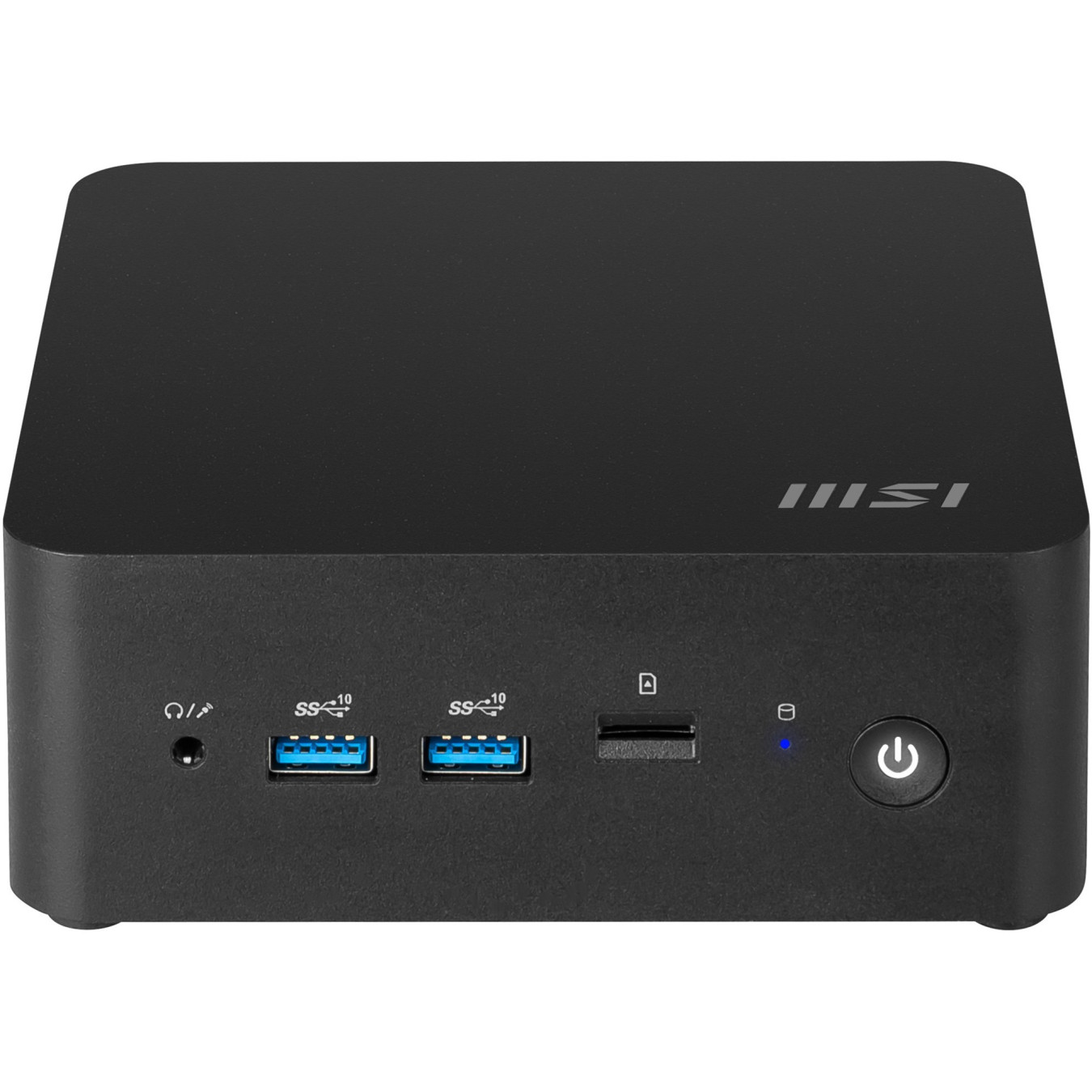

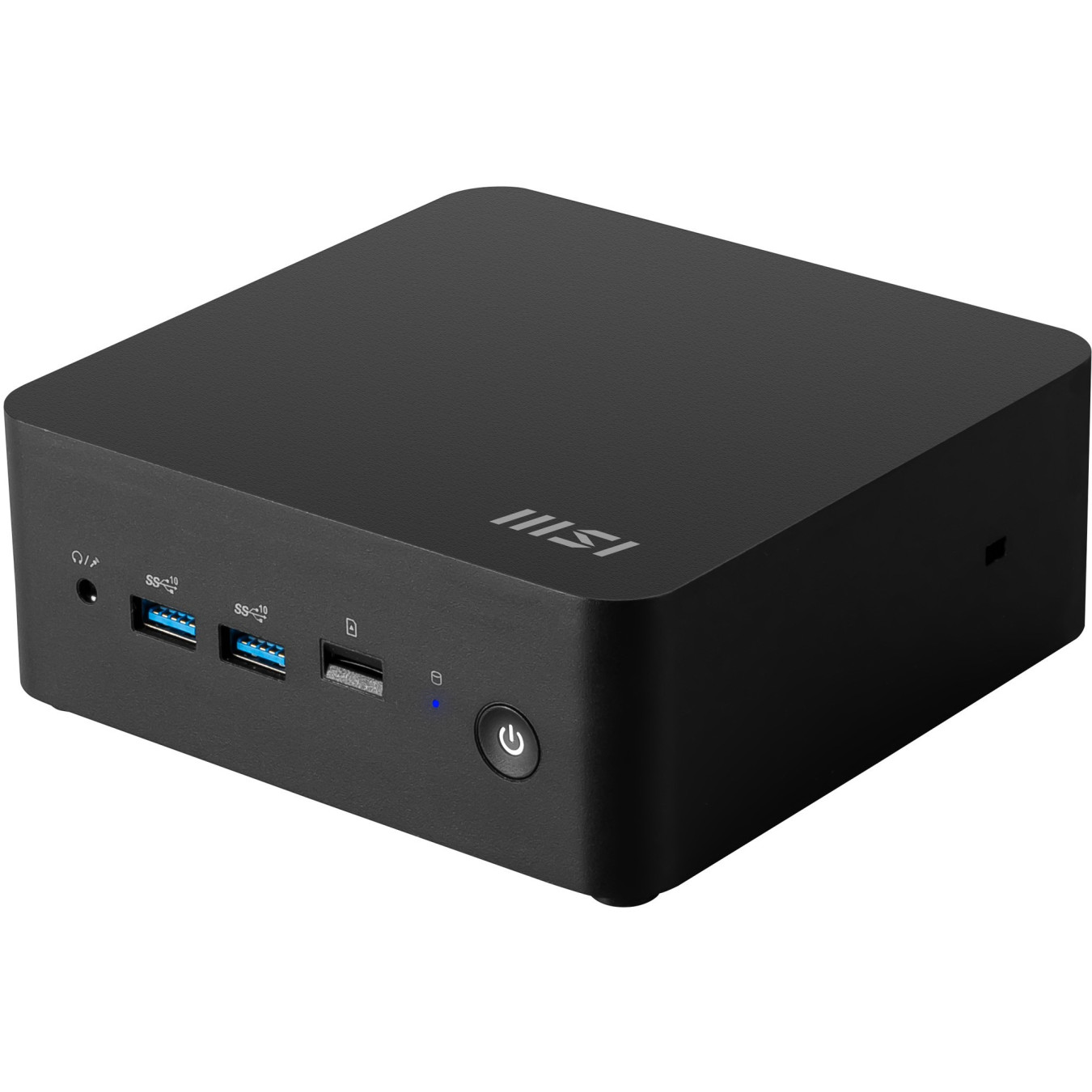

MSI Cubi NUC 1MG-024XDE - Intel Core i3-100U 4.7GHz, 8GB DDR5, 256GB SSD, Black Mini PC
Compact MSI Cubi NUC 1MG-024XDE mini PC — Intel Core i3-100U (up to 4.7GHz), 8GB DDR5-5600, 256GB SSD, Intel integrated graphics, Wi‑Fi, no OS
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Barebone & Mini PCs - Type | Mini PC (Ready-to-Use) |
|---|---|
| Barebone & Mini PCs - CPU Series | Intel Core i3 |
| Barebone & Mini PCs - Memory Type | DDR5 SO-DIMM |
| Barebone & Mini PCs - Memory Slots | 2 |
| Barebone & Mini PCs - Max Memory | 64 GB |
| Barebone & Mini PCs - Graphics | Integrated |
| Barebone & Mini PCs - OS | No OS |
MSI Cubi NUC 1MG-024XDE. Processor family: Intel Core 3. Processor model: 100U. Internal memory: 8 GB. Internal memory type: DDR5-SDRAM. Memory clock speed: 5600 MHz. Total storage capacity: 256 GB. Storage media: SSD. Card reader integrated. On-board graphics card model: Intel Graphics. Wi-Fi. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 630 g. Product colour: Black
| Processor manufacturer | Intel |
| Processor family | Intel Core 3 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 100U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor boost frequency | 4.7 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Number of processors supported | 1 |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of storage drives supported | 3 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 4.0 |
| Feature | Power cord included |
| SSD form factor | M.2 |
| Compatible memory cards | MicroSD (TransFlash) |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| LAN controller | Intel I226-V |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth version | 5.3 |

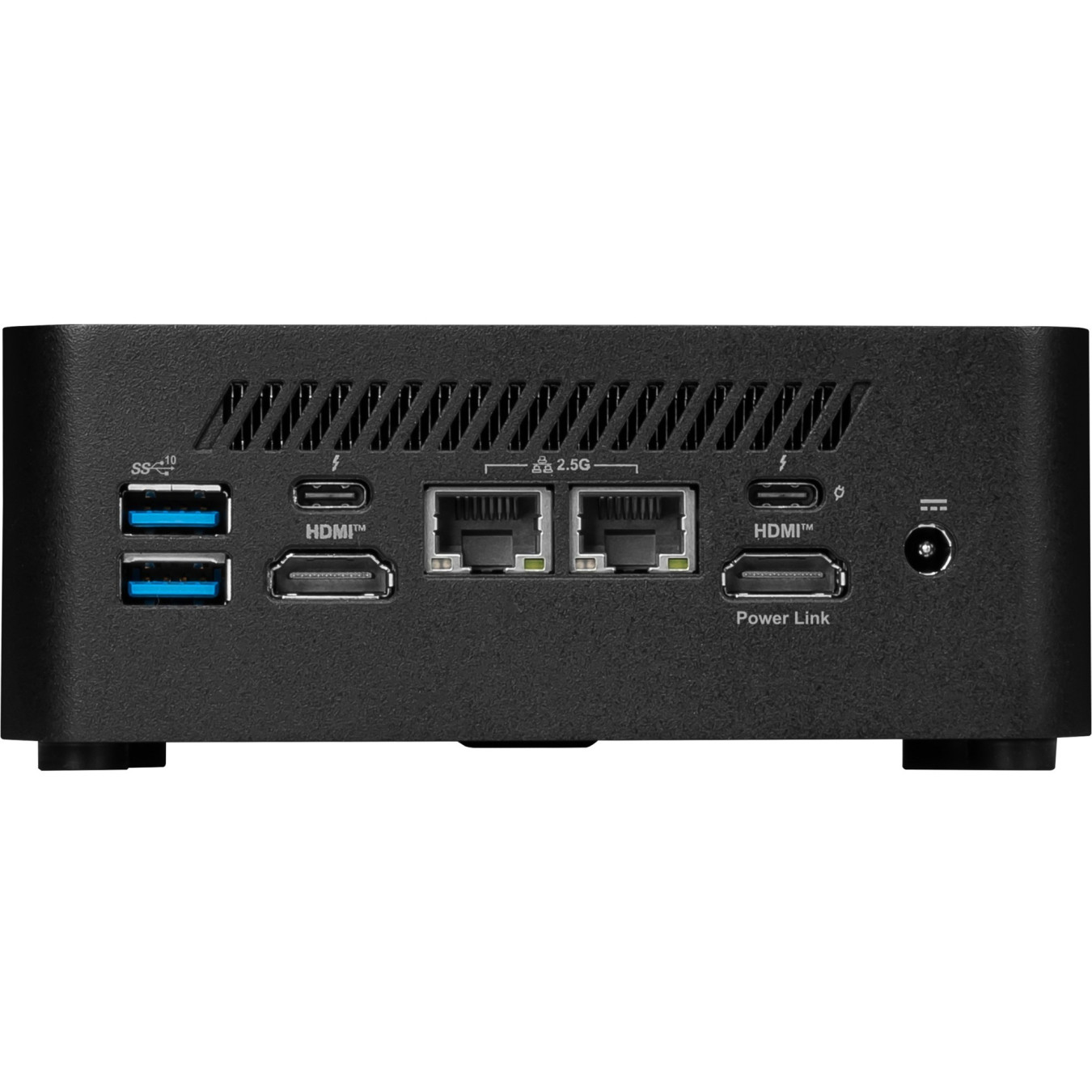

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Thunderbolt 4 ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Chassis type | Mini PC |

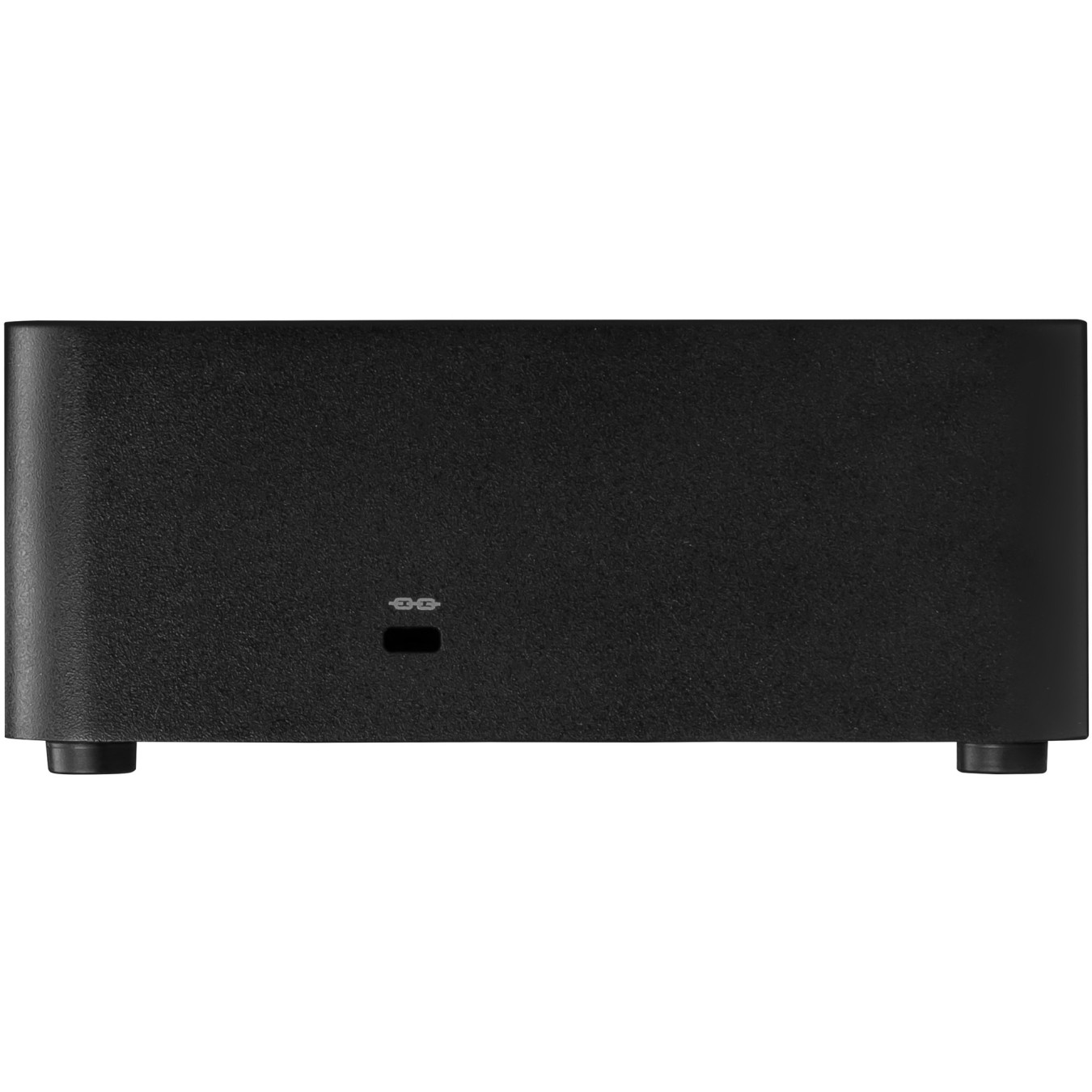

| Cable lock slot type | Kensington |
| Product colour | Black |
| Housing material | Plastic |
| Motherboard chipset | Intel SoC |
| Motherboard form factor | NUC |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Power supply | 120 W |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Certification | FCC(Class B). CB/CE. UL(CUL). BSMI. VCCI. RCM(C-Tick) |
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Weight | 630 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.38 kg |
| Power supply type | External AC adapter |

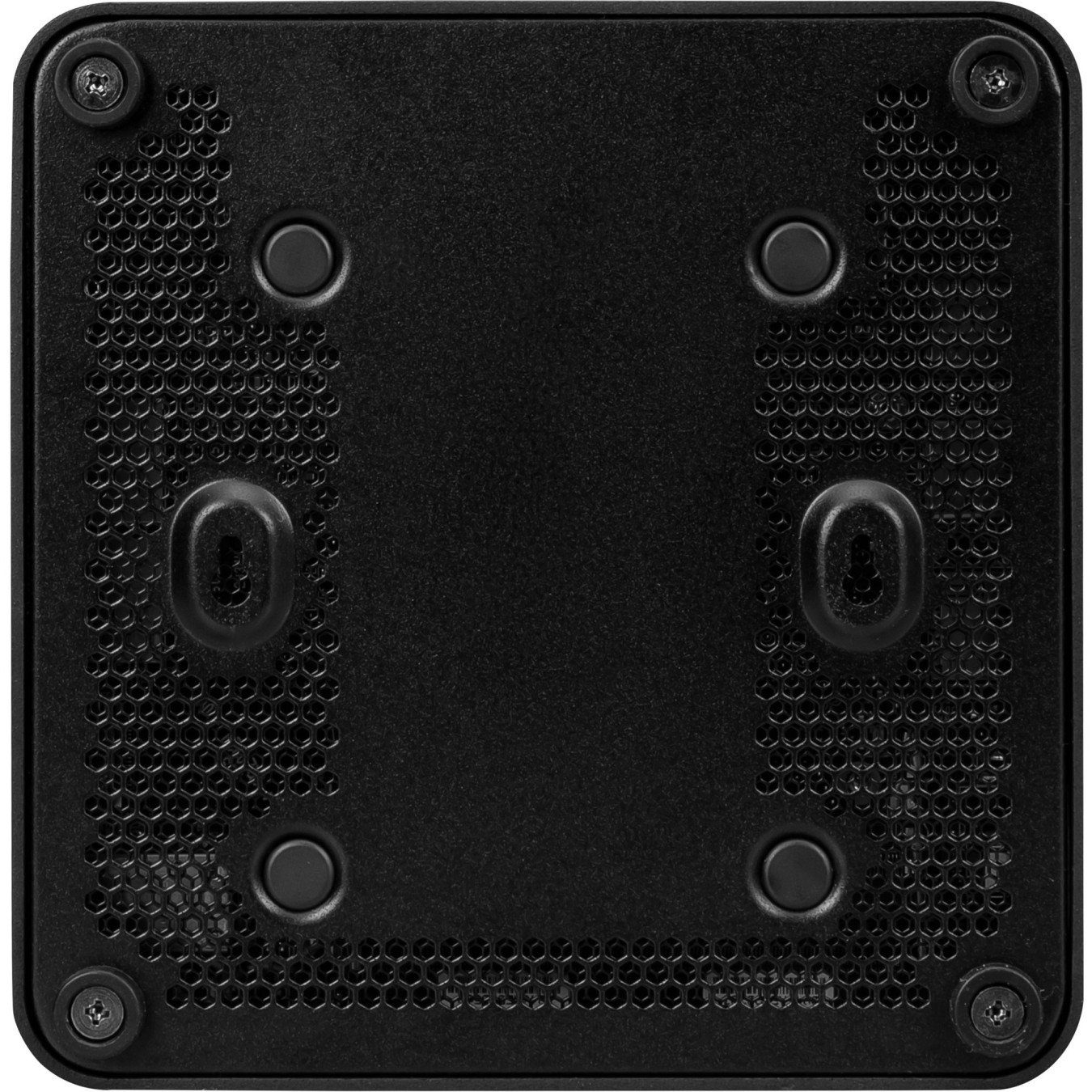

| Panel mounting interface | 100 x 100 mm |
| Graphics card family | Intel |
| Cooling type | Active |
| Number of displays supported | 4 |
| Number of M.2 (M) slots | 2 |
