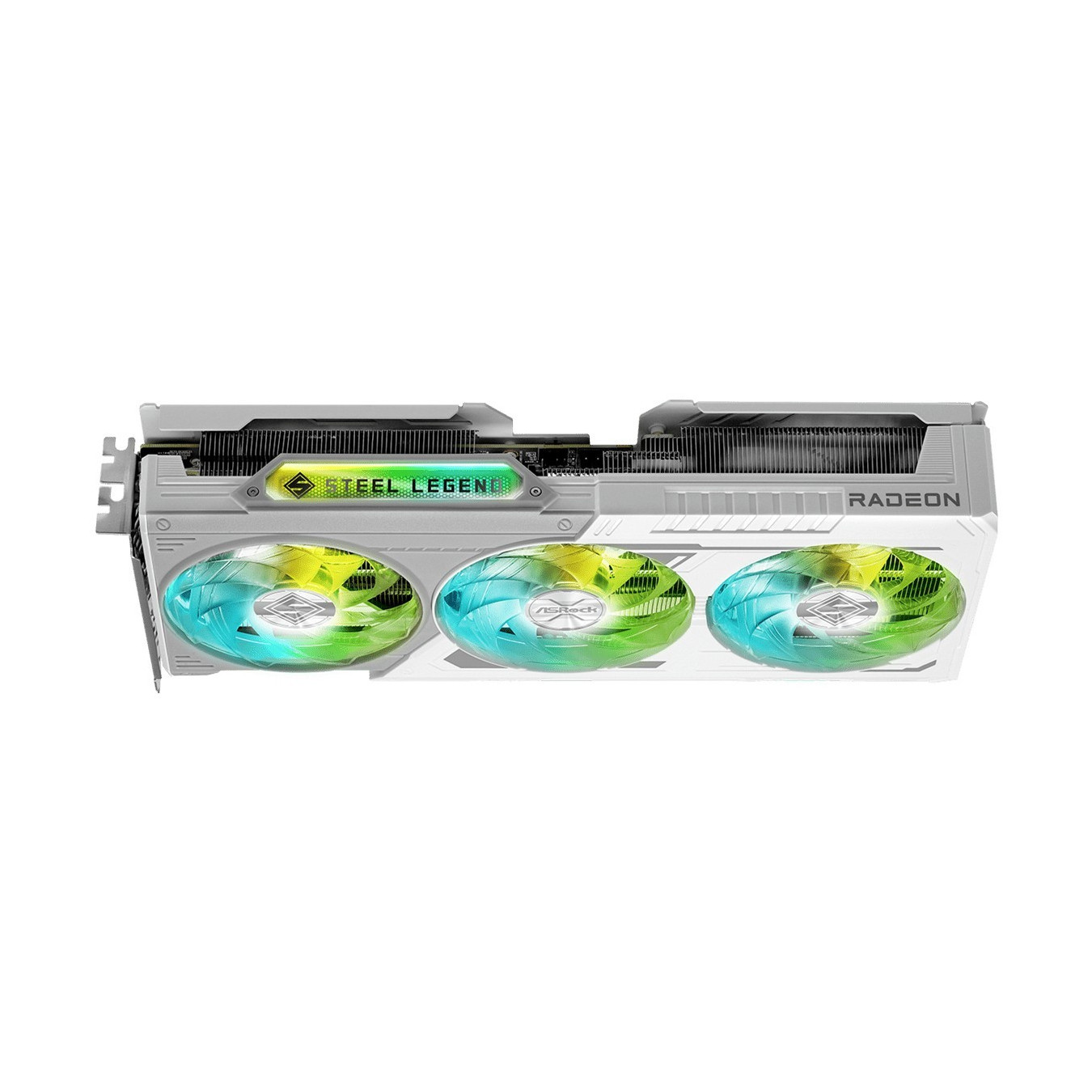

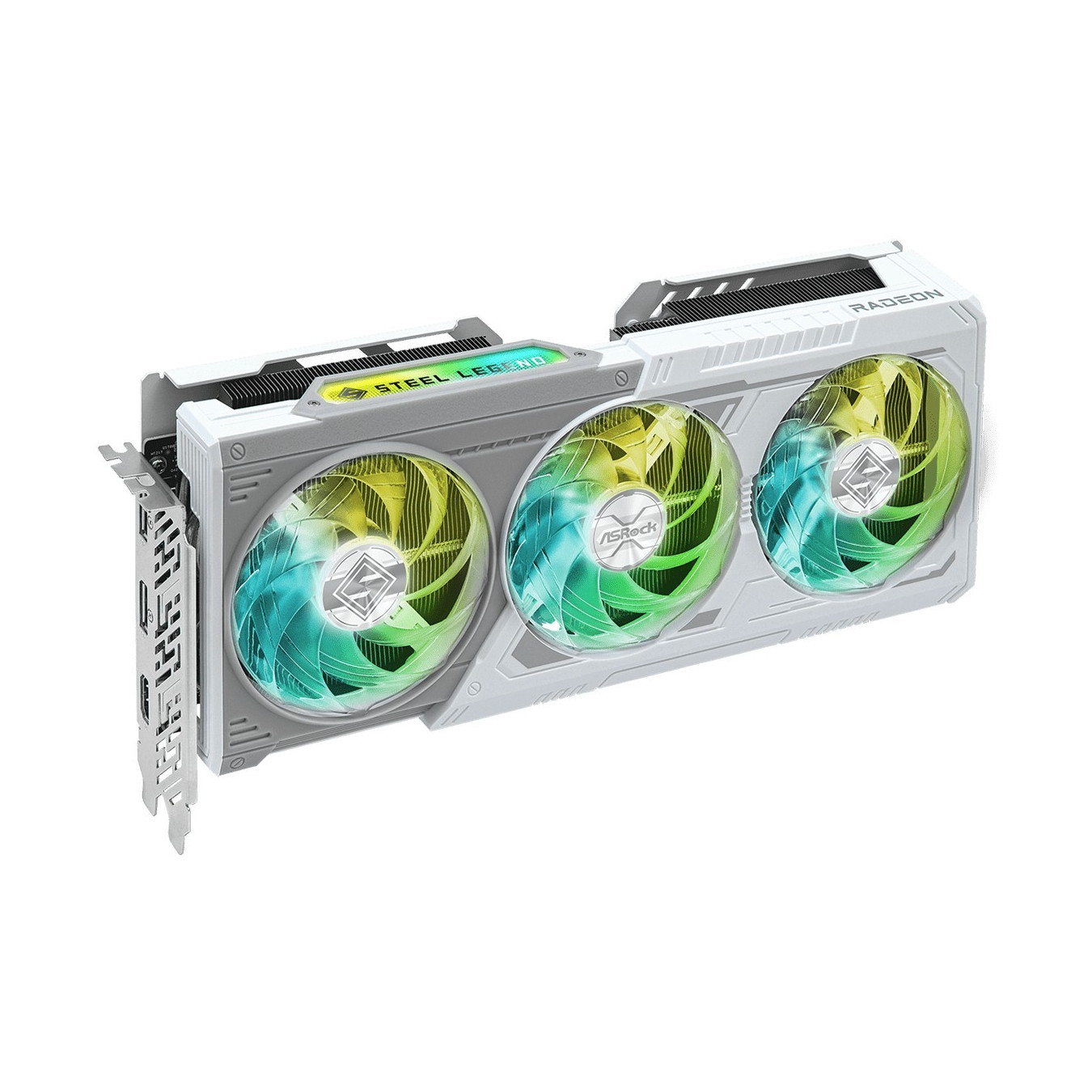

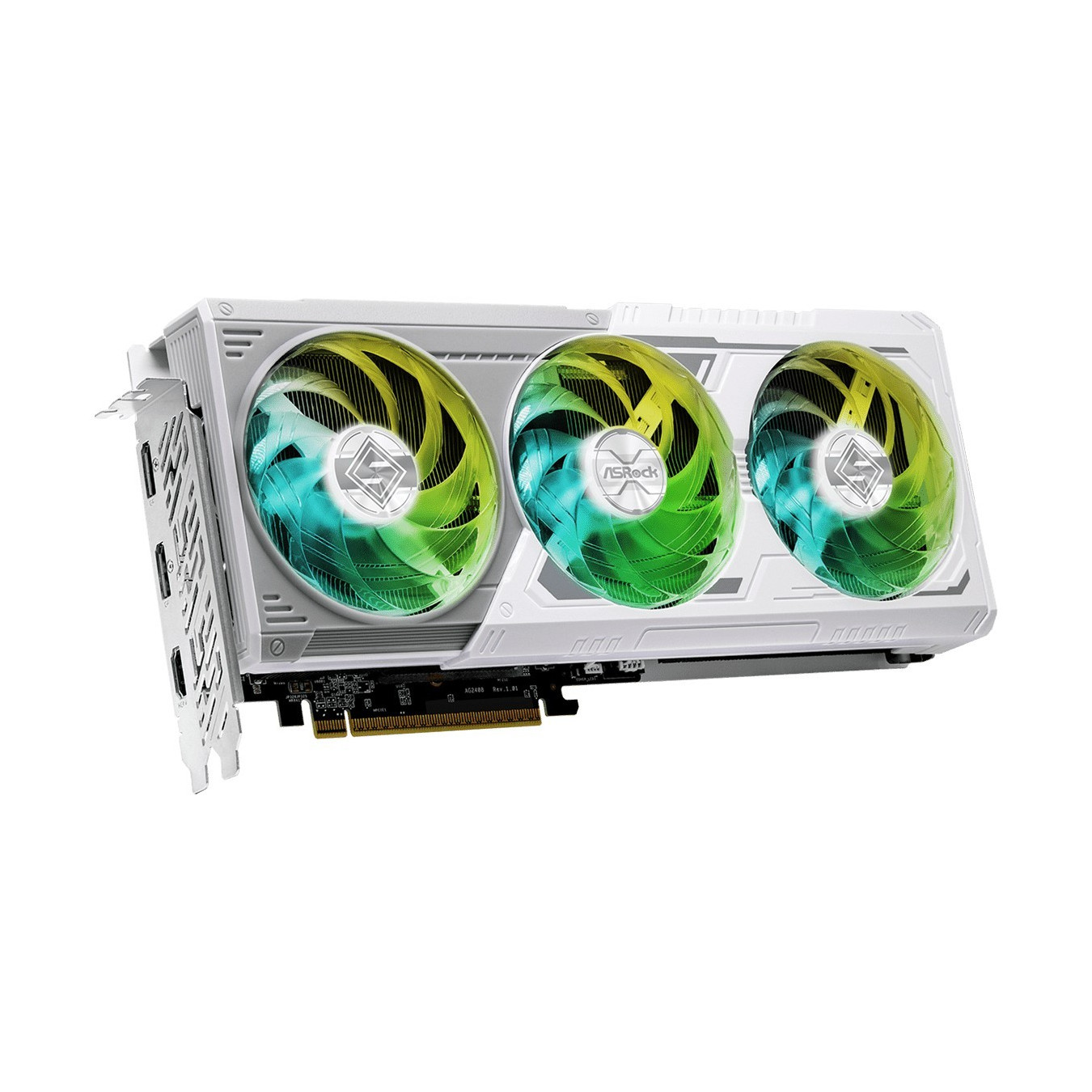

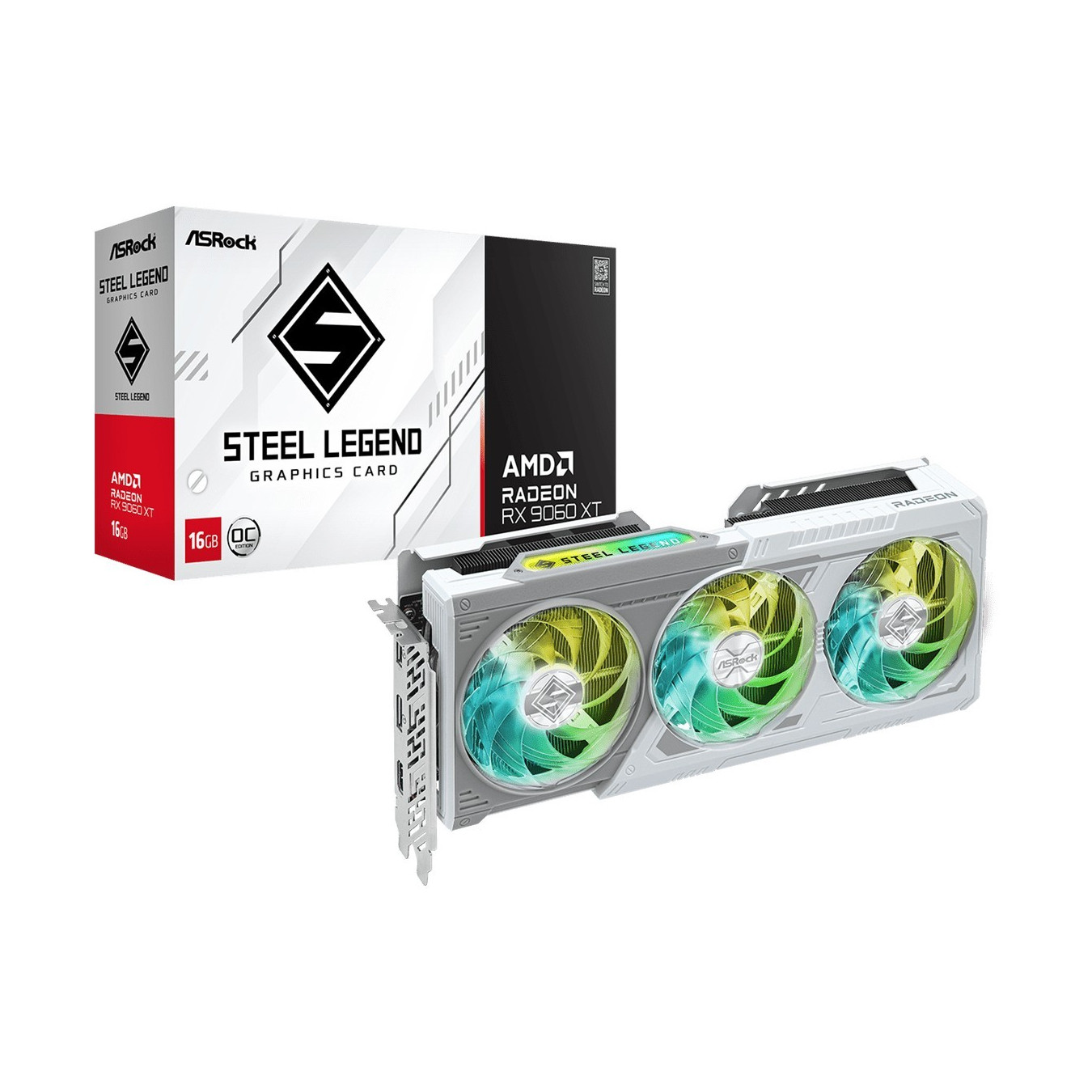

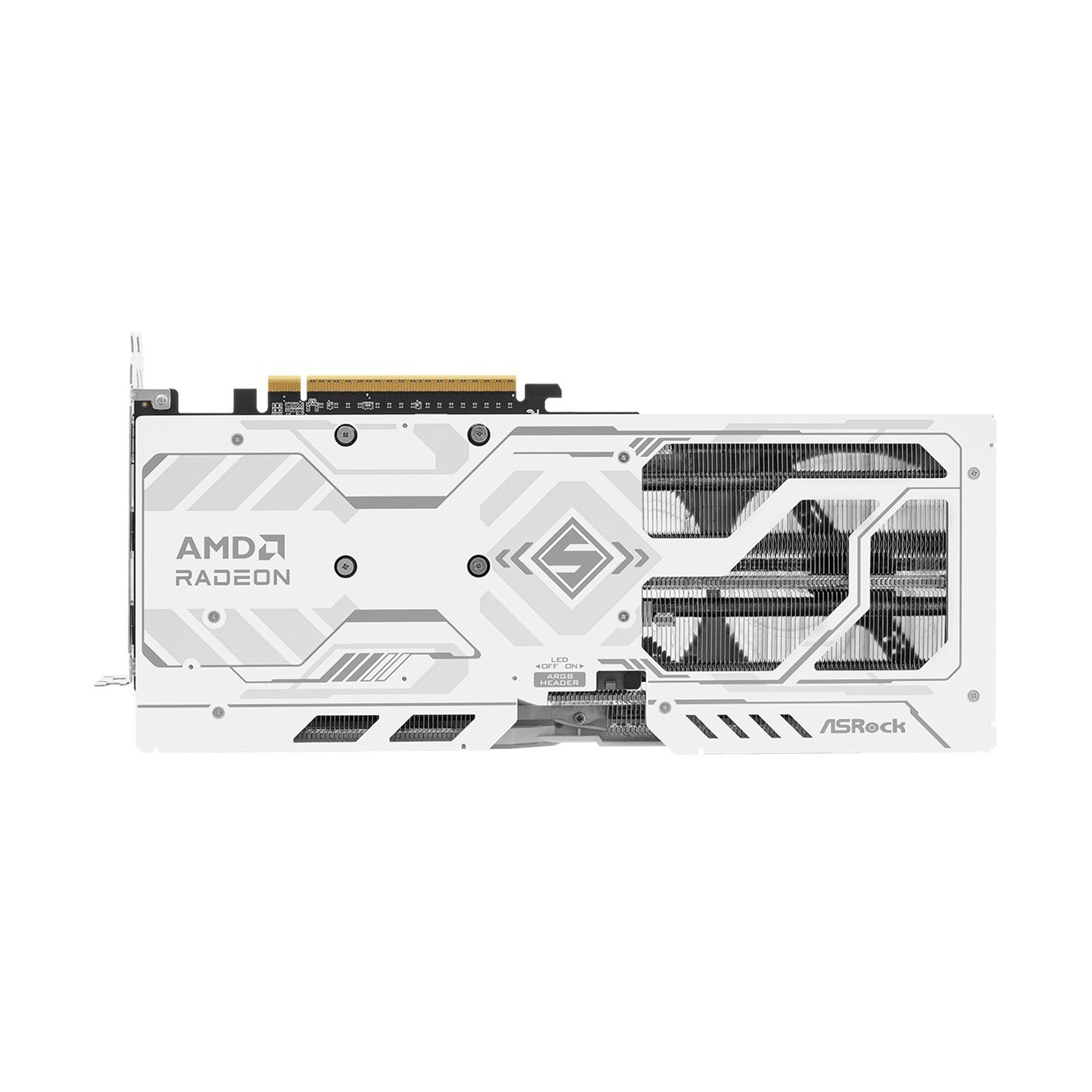

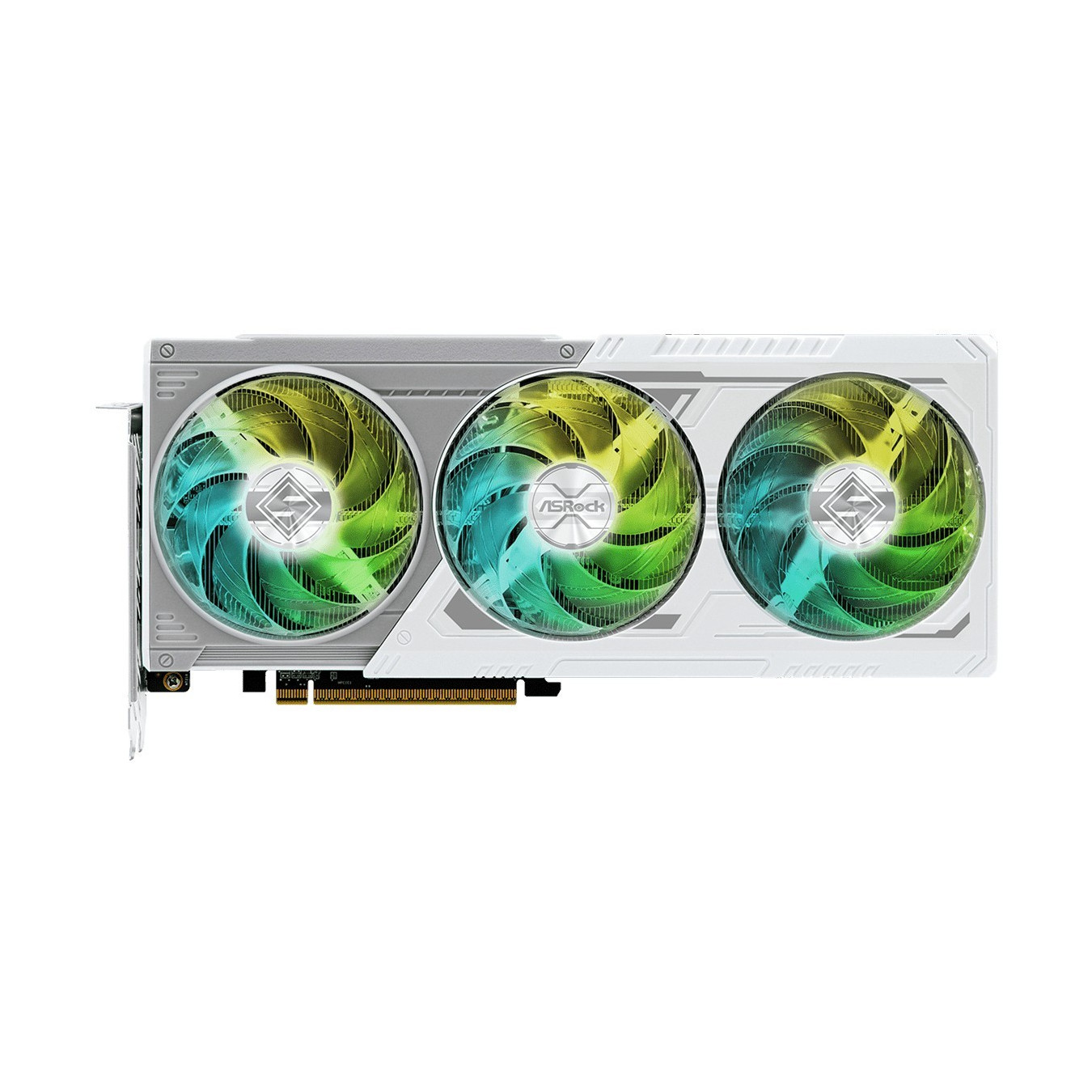

ASRock Radeon RX 9060 XT Steel Legend OC 16GB GDDR6 - PCIe 5.0 3320MHz Boost 2780MHz Game Clock Triple Fan RGB (Boxed)
ASRock Radeon RX 9060 XT Steel Legend OC: 16GB GDDR6 on 128-bit bus, RDNA 4 GPU, boost up to 3320MHz/game 2780MHz, PCIe 5.0, triple fan cooling w/ 0dB silent, 2xDP 2.1a+HDMI 2.1b, metal backplate, Polychrome RGB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | White |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Large (281-300 mm) |
The ASRock Radeon RX 9060 XT Steel Legend OC 16GB delivers impressive 1080p/1440p gaming performance powered by AMD RDNA 4 architecture with 32 Compute Units and 2048 Stream Processors. Featuring 16GB GDDR6 memory at 20 Gbps on a 128-bit bus, it supports up to 7680x4320 resolution via 2x DisplayPort 2.1a and 1x HDMI 2.1b. Boost clock reaches 3320 MHz with game clock at 2780 MHz, enhanced by AMD FSR 4 and HYPR-RX for smooth gameplay.
Premium Steel Legend cooling includes triple striped ring fans, ultra-fit heatpipes, air deflecting fins, and 0dB silent operation. The stylish white design features Polychrome SYNC RGB lighting (amber, blue, green, red), metal backplate, and Super Alloy components for durability. Requires 550W PSU with 1x 8-pin connector; dimensions 298 x 131 x 51 mm (2.55-slot), 967g net weight.
- ✅ PCIe 5.0 x16 interface
- ✅ DirectX 12 Ultimate & OpenGL 4.6
- ✅ 3 display support
- ✅ AMD Smart Access Memory compatible
- ✅ Ideal for 1080p/1440p gaming
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 XT |
| Architecture | RDNA 4 |
| Compute Units | 32 |
| Processor boost clock speed | 3320 MHz |
| Game clock | 2780 MHz |
| Stream processors | 2048 |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 3 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1a |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Number of slots | 2.55 |
| Product colour | White |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Weight | 967 g |
| Length | 298 mm |
| Depth | 131 mm |
| Height | 51 mm |
| Backplate | Metal |
| RGB Lighting | Polychrome SYNC (Amber, Blue, Green, Red) |
