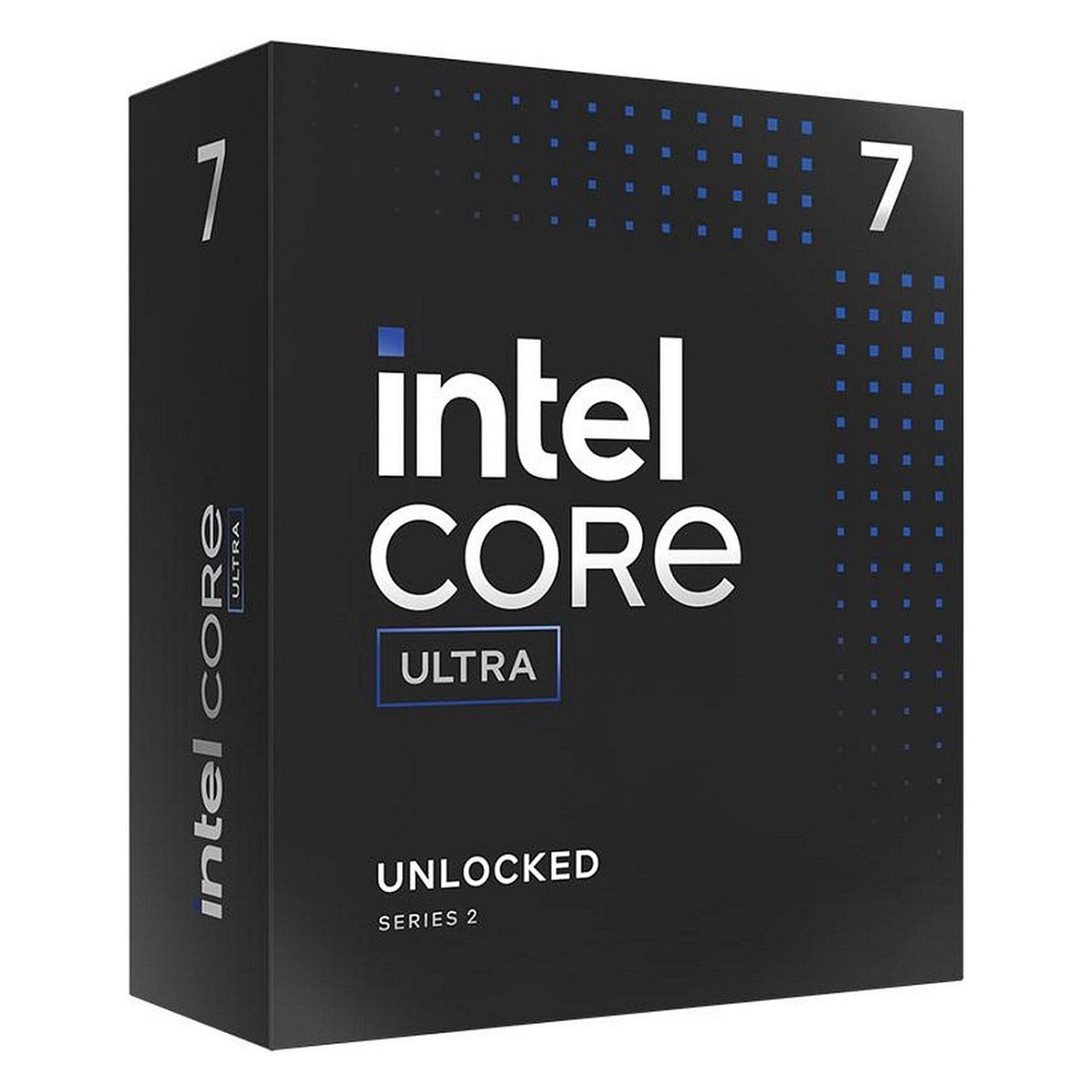

Intel S1851 CORE ULTRA 7 270K Plus 3.7 GHz BOX
Intel Core Ultra 7 270K Plus, Intel Core Ultra 7, FCLGA1851, Box, Intel, 270K Plus, 64-Bit
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Intel Core Ultra 7 270K Plus. Prozessorfamilie: Intel Core Ultra 7, Prozessorsockel: FCLGA1851, Verpackungsart: Box. Neuronale Prozessoreinheit (NPU): Intel AI Boost, Von der NPU unterstützte AI-Software-Frameworks: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Gesamtleistung des Prozessors bis zu: 36 Tera-Vorgänge pro Sekunde. Speicherkanäle: Zweikanalig, Maximaler interner Speicher, vom Prozessor unterstützt: 256 GB. Eingebautes Grafikkartenmodell: Intel-Grafik, On-Board Grafikadapter Basisfrequenz: 300 MHz, Maximale dynamische Frequenz der On-Board Grafikadapter: 2000 MHz. Marktsegment: Desktop, Nutzungsbedingungen: Arbeitsstation, PC/Client/Tablet, PCI-Express-Slots-Version: 4.0, 5.0
| Prozessorhersteller | Intel |
| Prozessorgeneration | Intel Core Ultra (Series 2) |
| Prozessor | 270K Plus |
| Prozessorfamilie | Intel Core Ultra 7 |
| Anzahl Prozessorkerne | 24 |
| Prozessorsockel | FCLGA1851 |
| Prozessor-Threads | 24 |
| Prozessorbetriebsmodi | 64-Bit |
| Leistungskerne | 8 |
| Effiziente Kerne | 16 |
| Prozessor Boost-Frequenz | 5,5 GHz |
| Leistung Kern-Boost-Frequenz | 5,4 GHz |
| Leistung Basisfrequenz des Kerns | 3,7 GHz |
| Effiziente Kern-Boost-Frequenz | 4,7 GHz |
| Effiziente Basisfrequenz des Kerns | 3,2 GHz |
| Prozessor-Cache | 36 MB |
| Prozessor Cache Typ | Smart Cache |
| Verpackungsart | Box |
| Grundleistung des Prozessors | 125 W |
| Maximale Turboleistung | 250 W |
| Von der CPU unterstützte AI-Software-Frameworks | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Maximale Anzahl DMI-Spuren | 8 |
| Prozessor Codename | Arrow Lake |
| ARK Prozessorerkennung | 245692 |
| Neuronale Prozessoreinheit (NPU) | Intel AI Boost |
| Sparsity Support | Ja |
| Unterstützung für Windows Studio-Effekte | Ja |
| Von der NPU unterstützte AI-Software-Frameworks | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Gesamtleistung des Prozessors bis zu | 36 Tera-Vorgänge pro Sekunde |
| NPU-Leistung bis zu | 13 Tera-Vorgänge pro Sekunde |
| GPU-Leistung bis zu | 8 Tera-Vorgänge pro Sekunde |
| Maximaler interner Speicher, vom Prozessor unterstützt | 256 GB |
| Speicherkanäle | Zweikanalig |
| ECC | Ja |
| Eingebaute Grafikadapter | Ja |
| Separater Grafikadapter | Nein |
| Eingebautes Grafikkartenmodell | Intel-Grafik |
| On-Board Grafikadapter Basisfrequenz | 300 MHz |
| Maximale dynamische Frequenz der On-Board Grafikadapter | 2000 MHz |
| Anzahl an unterstützen Displays (On-Board-Grafik) | 4 |
| On-Board Grafikadapter DirectX Version | 12.0 |
| On-Board Grafikadapter OpenGL Version | 4.5 |
| Maximale Auflösung des On-Board Grafikadapters (DisplayPort) | 7680 x 4320 Pixel |
| Bildwiederholfrequenz des On-Board Grafikadapters bei maximaler Auflösung (DisplayPort) | 60 Hz |
| Bildwiederholfrequenz des On-Board Grafikadapters bei maximaler Auflösung (eDP - integrierter Flachbildschirm) | 120 Hz |
| Bildwiederholfrequenz des On-Board Grafikadapters bei maximaler Auflösung (HDMI) | 60 Hz |
| On-Board Grafikadapter Geräte-ID | 0x7D67 |
| Separates Grafikkartenmodell | Nicht verfügbar |
| Unterstützte Hardware-Codecs zum Kodieren/Dekodieren | H.264, H.265 (HEVC) |
| Xe-Kerne | 4 |
| Von der GPU unterstützte AI-Software-Frameworks | DirectML, OpenVINO, Windows ML, ONNX RT, WebGPU |
| AV1 kodieren/dekodieren | Ja |
| Execute Disable Bit | Ja |
| Leerlauf Zustände | Ja |
| Thermal-Überwachungstechnologien | Ja |
| Marktsegment | Desktop |
| Nutzungsbedingungen | Arbeitsstation, PC/Client/Tablet |
| Maximale Anzahl der PCI-Express-Lanes | 24 |
| PCI-Express-Slots-Version | 4.0, 5.0 |
| Unterstützte Befehlssätze | AVX 2.0, SSE4.1, SSE4.2 |
| Skalierbarkeit | 1S |
| Eingebettete Optionen verfügbar | Nein |
| Spezifikation der thermischen Lösung | PCG 2020A |
| Direkte Medienschnittstelle (DMI) Revision | 4.0 |
| Intel® Hyper-Threading-Technik (Intel® HT Technology) | Nein |
| Intel® Turbo-Boost-Technologie | 2.0 |
| Intel® Quick-Sync-Video-Technik | Ja |
| Intel® AES New Instructions (Intel® AES-NI) | Ja |
| Verbesserte Intel SpeedStep Technologie | Ja |
| Intel® Trusted-Execution-Technik | Ja |
| Intel®-Speed-Shift-Technologie | Ja |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5,5 GHz |
| Intel® Thunderbolt 4 | Ja |
| Intel® Control-flow Enforcement Technology (CET) | Ja |
| Intel® Thread Director | Ja |
| Intel® VT-x mit Extended Page Tables (EPT) | Ja |
| Intel® Sicherer Schlüssel | Ja |
| Intel® Active Management Technologie (Intel® AMT) | Ja |
| Intel® OS Guard | Ja |
| Intel® 64 | Ja |
| Intel® Virtualization Technologie (VT-X) | Ja |
| Intel® Virtualisierungstechnik für direkte I/O (VT-d) | Ja |
| Intel Turbo Boost Max Technology 3.0 | Ja |
| Intel® Boot Guard | Ja |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Ja |
| Intel® Volume Management Device (VMD) | Ja |
| Modusbasierte Execute Control (MBE) | Ja |
| Intel® vPro™ Platform Eligibility | Ja |
| Intel® Standard Manageability (ISM) | Ja |
| Intel® One-Click Recovery | Ja |
| Intel® Stable IT Platform Program (SIPP) | Ja |
| Intel® Remote Platform Erase (RPE) | Ja |
| Intel® Virtualisierungstechnik mit Umleitungsschutz (VT-rp) | Ja |
| Intel® Deep Learning Boost (Intel® DL Boost) auf GPU | Ja |
| Intel vPro® Enterprise Plattform-Berechtigung | Ja |
| Intel® Threat Detection Technology (TDT) | Ja |
| Intel® Total Memory Encryption - Multi Key | Ja |
| Intel vPro® Essentials Platform Eligibility | Ja |
| Maximale Betriebstemperatur | 105 °C |
| OpenCL-Version | 3.0 |
| Startdatum | Q1'26 |
| Status | Launched |
| Prozessor-Paketgröße | 45 x 37.5 mm |
| Pufferspeicher L2 | 40960 KB |
| RAM-Speicher maximal | 256 GB |
| Grafischer Ausgang | eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL |
