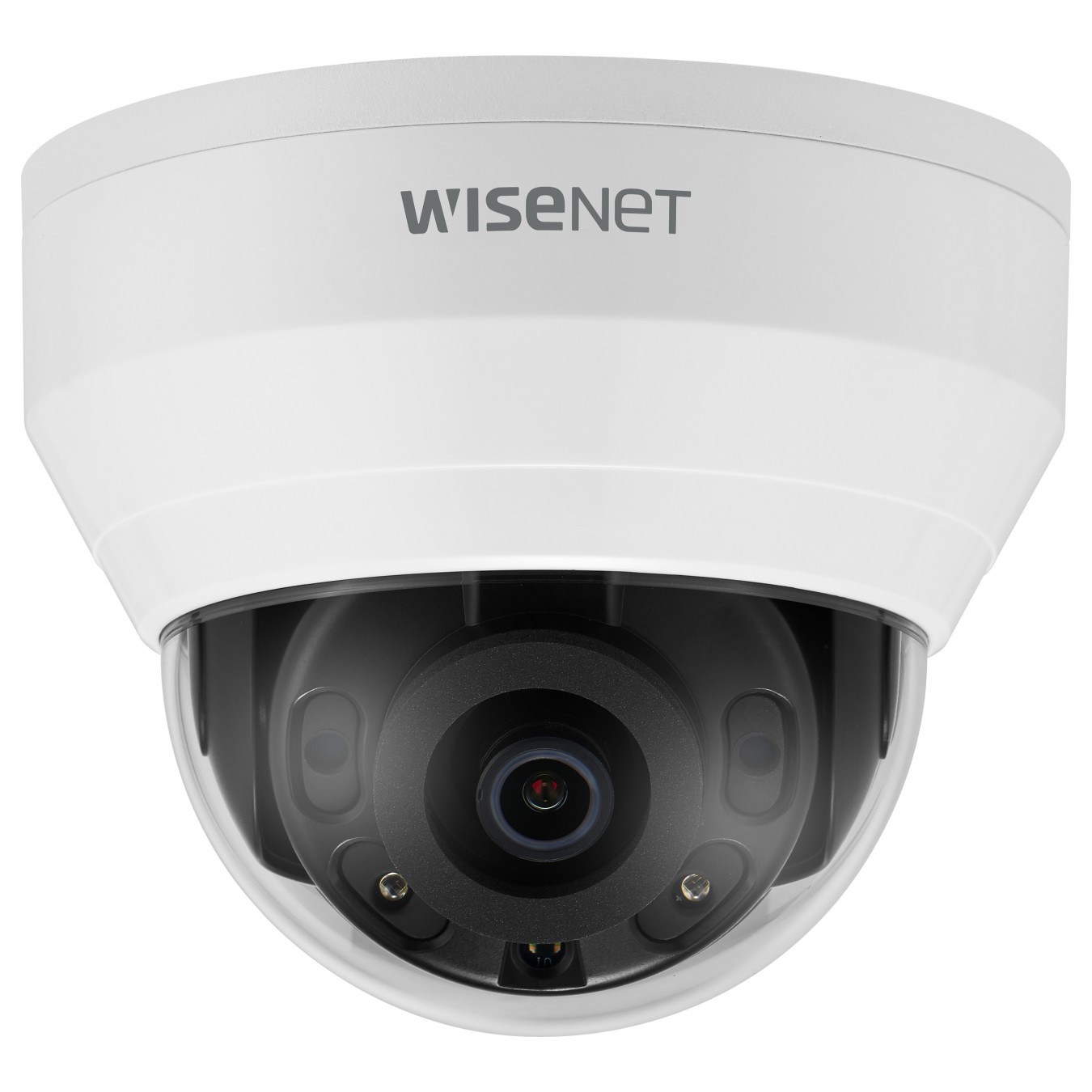

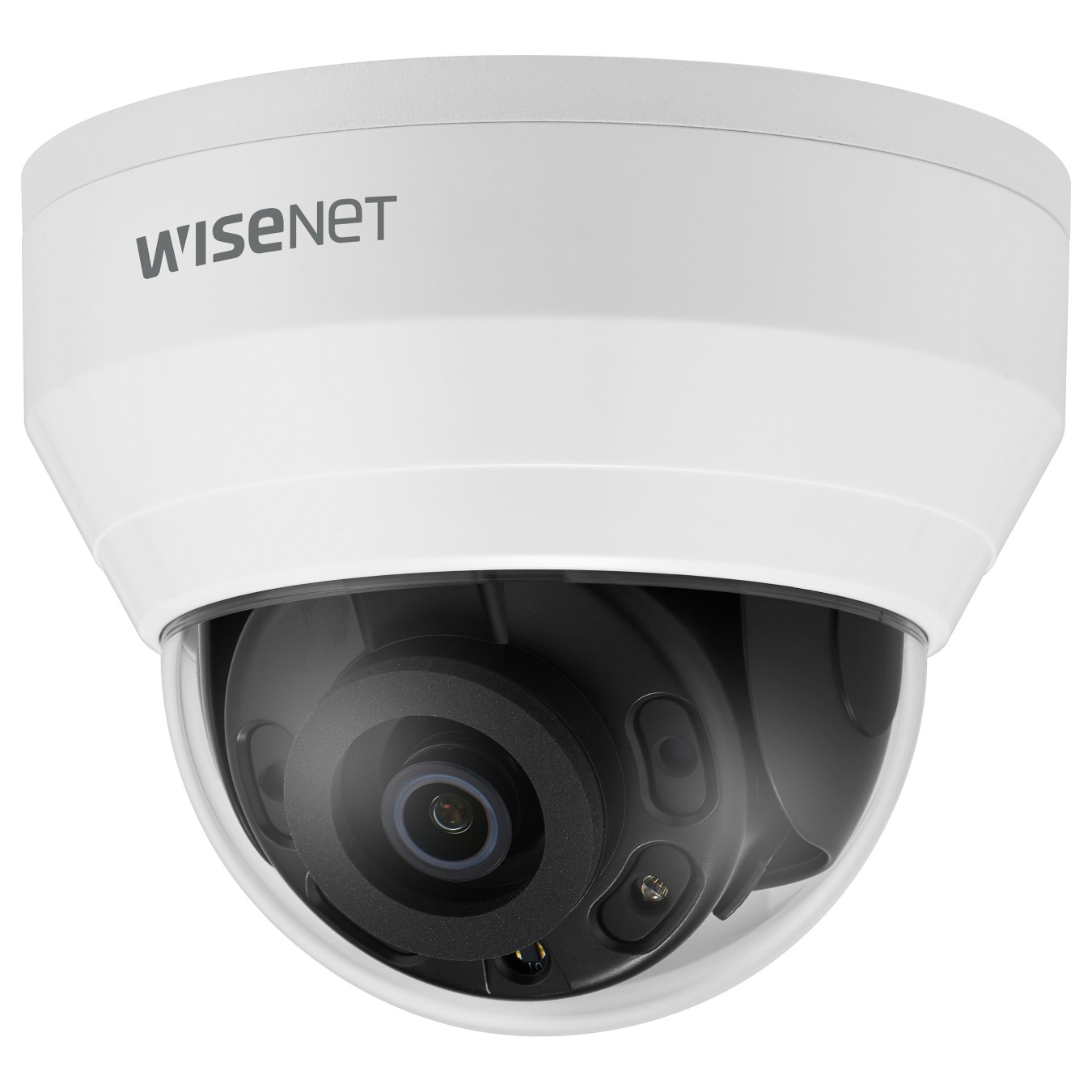

Hanwha Techwin IP-Cam Fixed Dome 'Q-Serie QND-8020R 5MP
Hanwha QND-8020R, IP-Sicherheitskamera, Draußen, Kabelgebunden, Vereinfachtes Chinesisch, Traditionelles Chinesisch, Tschechisch, Deutsch, Niederländisch,..., IP42, IK08 (TBD), Zimmerdecke
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Hanwha QND-8020R. Typ: IP-Sicherheitskamera, Unterstützte Positionierung: Draußen, Übertragungstechnik: Kabelgebunden. Befestigungstyp: Zimmerdecke, Produktfarbe: Weiß, Formfaktor: Dome. Mindestbeleuchtung: 0,15 Lux, Betrachtungswinkel (horizontal): 82°, Betrachtungswinkel (vertikal): 60°. Sensor-Typ: CMOS, Größe des Bildsensors: 25,4 / 2,8 mm (1 / 2.8"), Anzahl der effektiven Pixel (H x V): 2592 x 1944 Pixel. Feste Brennweite: 4 mm
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Draußen |
| Übertragungstechnik | Kabelgebunden |
| Wide Dynamic Range (WDR) | Ja |
| Tag/ Nachtmodus | Ja |
| Alarmeingabe/-ausgabe | Ja |
| Unterstützte Sprachen | Vereinfachtes Chinesisch, Traditionelles Chinesisch, Tschechisch, Deutsch, Niederländisch, Englisch, Spanisch, Französisch, Griechisch, Ungarisch, Italienisch, Japanisch, Koreanisch, Polnisch, Portugiesisch, Russisch, Schwedisch, Türkisch |
| Zertifizierung | IP42, IK08 (TBD) |
| Formfaktor | Dome |
| Befestigungstyp | Zimmerdecke |
| Produktfarbe | Weiß |
| Gehäusematerial | Aluminium, Kunststoff |
| Mindestbeleuchtung | 0,15 Lux |
| Betrachtungswinkel (horizontal) | 82° |
| Betrachtungswinkel (vertikal) | 60° |
| Betrachtungswinkel des Objektivs, diagonal | 105° |
| Neigungswinkelbereich | 0 - 67° |
| Schwenkbereich | 0 - 350° |
| Weißabgleich | ATW, AWC, Drinnen, Manuell, Draußen |
| Verschlusstyp | Elektronisch |
| Anpassung der Shutter-Geschwindigkeit | Manuell |
| Größe des Bildsensors | 25,4 / 2,8 mm (1 / 2.8") |
| Sensor-Typ | CMOS |
| Anzahl der effektiven Pixel (H x V) | 2592 x 1944 Pixel |
| Fester Fokus | Ja |
| Maximale Blendenzahl | 1,6 |
| Feste Brennweite | 4 mm |
| Nachtsicht | Ja |
| Nachtsichtdistanz | 20 m |
| LED Typ | IR |
| Maximale Auflösung | 2592 x 1944 Pixel |
| Megapixel insgesamt | 5 MP |
| Videokompressionsformate | H.264, H.265, M-JPEG |
| Unterstützte Grafik-Auflösungen | 640 x 360, 640 x 480 (VGA), 720 x 480, 768 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 960, 1920 x 1080 (HD 1080), 2592 x 1944 |
| Videostreaming | Ja |
| Geräuschunterdrückung | Ja |
| Bitratenkontrolle | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gegenlichtkompensation | Ja |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Netzstandard | IEEE 802.1x |
| Unterstützte Netzwerkprotokolle | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| WLAN | Nein |
| Bluetooth | Nein |
| Zahl der Benutzer | 6 Benutzer |
| Quality of Service (QoS) Support | Ja |
| Streaming-Verfahren | Multicasting, Unicast |
| Integrierter Kartenleser | Ja |
| Kompatible Speicherkarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Max. Speicherkartengröße | 128 GB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Video-Bewegungsmelder | Ja |
| Aktiver Fälschungsalarm | Ja |
| IP-Adressen Filter | Ja |
| Warnbenachrichtigungstyp | |
| Energiequelle | PoE |
| Betriebstemperatur | -30 - 55 °C |
| Temperaturbereich bei Lagerung | -30 - 55 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 90% |
| Luftfeuchtigkeit bei Lagerung | 0 - 90% |
| Unterstützt Windows-Betriebssysteme | Ja |
| Unterstützt Mac-Betriebssysteme | Ja |
| Höhe | 86 mm |
| Durchmesser | 11 cm |
